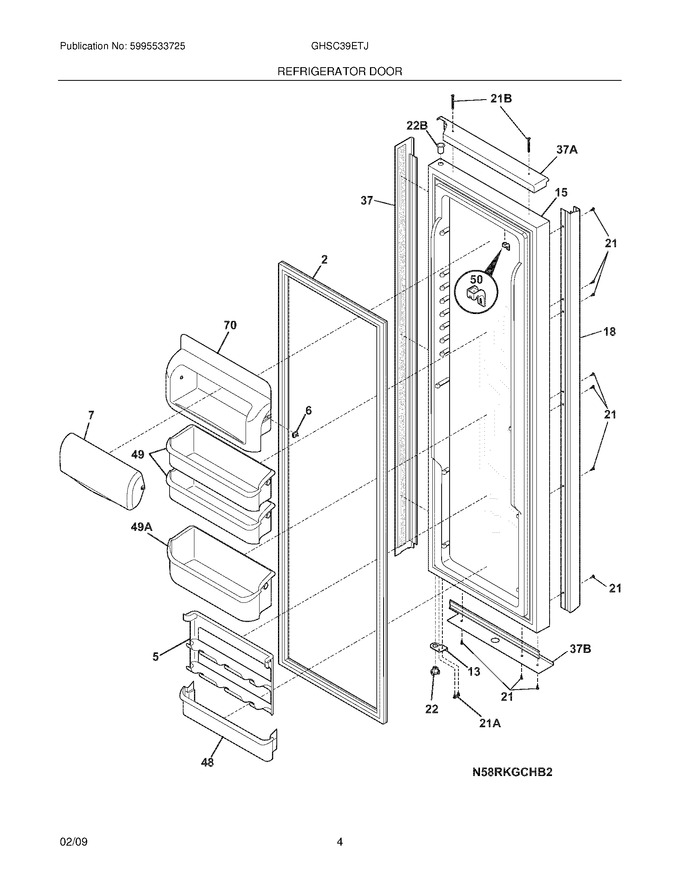

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241515606		Door-dairy   (Replaces: 241515601)				$ 40.96
13	240581905		Door Stop,black ,ref				$ 60.25
15	241534515		Door-refr,black ,complete Assy				$ 295.16
18	241533608		Handle-refr Door,aluminum				$ 229.41
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
37	241533708		Trim-door,aluminum ,side		Appelez-nous	-
48	241511701		Bin-door,gallon ,ref ,w/trim   (Replaces: 241808207)			Immediately	$ 67.21
49	241505301		Bin-door,2 Liter   (Replaces: 241808213)			Immediately	$ 76.40
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 177.89
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
21B	241543202		Screw,no.10-16 X 2		Appelez-nous	-
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
37A	241534208		Trim-door,aluminum ,top		Appelez-nous	-
37B	241533808		Trim-door,aluminum ,bottom		Appelez-nous	-
49A	241505501		Bin-door,gallon ,w/trim   (Replaces: 241808210)			Immediately	$ 99.03
F2	241510207		Gasket-refr Door,black ,magnetic   (Replaces: 241510203)			Immediately	$ 97.14
F49A	241780001		Liner,bin ,gallon				$ 63.74
NI	241779901		Liner,bin ,2 Liter				$ 33.84

    View Diagram in Separate Window       Print Part List
