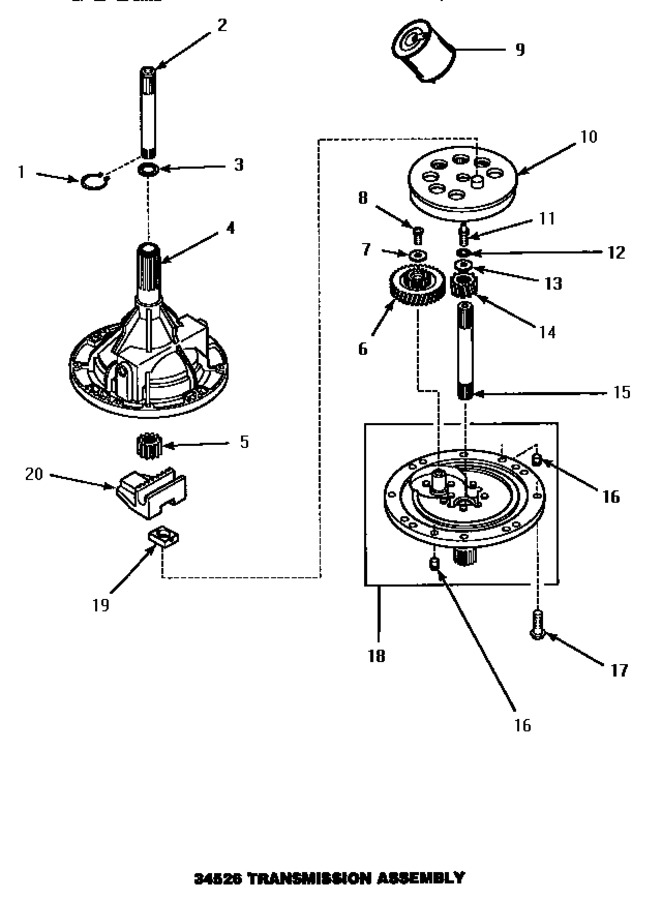

01 - 34526 Transmission Assy


02 - Agitator & Drive Bell


03 - Brg Hsg/brake/pulley & Pivot Dome


04 - Cab Top/loading Dr & Ctrl Hood Rear Pan


05 - Clothes Guard/washtub/lint Filter & Hub


06 - Drain Hose & Siphon Break


07 - Front Panel, Base & Cabinet Assy


08 - Graphic Panel, Ctrl Mtg Plate & Ctrls


09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt


10 - Mixing Valve Assy


11 - Mixing Vlv & Mtr Conn Blocks/term & Tool


12 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


13 - Outer Tub, Cover & Pressure Hose


14 - Out-of-balance Switch


15 - Power Cord & Terminals


16 - Special Tools


17 - Special Tools


18 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	27197		Ring,retaining				$ 6.95
2	36570P		Shaft, Output   (Replaces: Y36570)				$ 81.41
3	35092		Washer,3628id X 1.00 X .056				$ 2.01
4	33223P		Assy,transmission Case   (Replaces: 33223)				$ 257.24
5	RO81		Pinion,agitator   (Replaces: 27003)			Immediately	$ 27.76
6	29161		Gear,reduction		Appelez-nous	-
7	29260		Washer				$ 2.50
8	29273		Screw,1/4-20 X 3/8		Appelez-nous	-
9	27243P		Oil,cw Transmission F-				$ 84.57
10	DE81-05916A		Assy,gear & Stud   (Replaces: 26577)				$ 65.22
11	27030		Screw,1/4-20 Special		Appelez-nous	-
12	21456		Lockwasher,1/4 Intshkp				$ 154.99
13	26509		Washer				$ 6.95
14	Y29160		Pinion,drive		Appelez-nous	-
15	34853		Shaft,input		Appelez-nous	-
16	27172		Pin,dowel		Appelez-nous	-
17	32814		Screw,1/4-20x7/8 Serra		Appelez-nous	-
18	34854		Transmission Cover		Appelez-nous	-
19	26493		Slide			Immediately	$ 8.56
20	201664		Rack   (Replaces: Y31526)				$ 74.76
NI	28434P		Loctite		Appelez-nous	-
