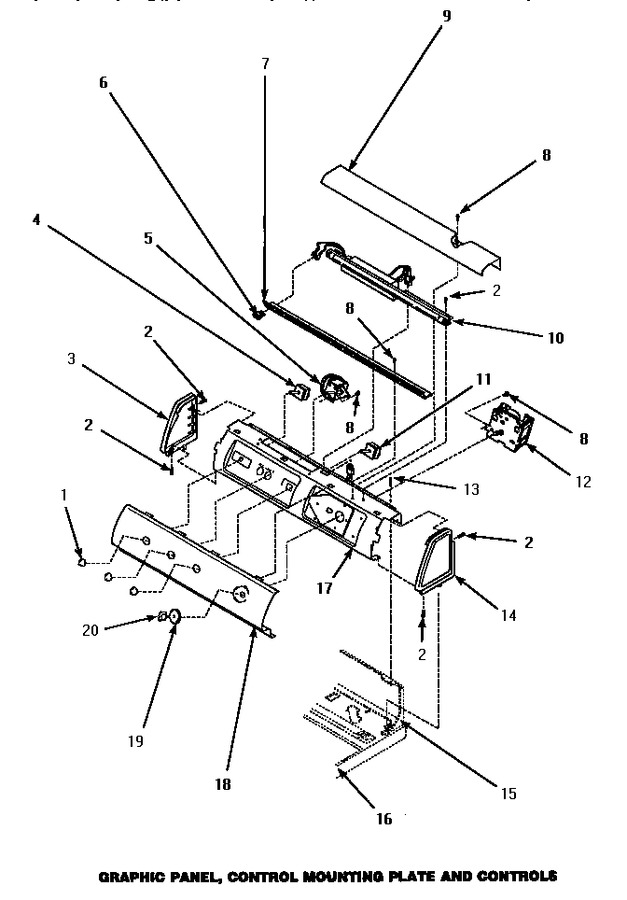

LWM833W (BOM: P1176503W W) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	WP36701W	Assy,knob-rotary (Replaces: 35330W)		Immediately	$ 44.31
2	WP90767	Screw, 8b-18x3/8 Slt (Replaces: 501086)		Immediately	$ 7.04
3	D504009WP	Panel,end-lh (Replaces: 34818W)		Immediately	$ 22.20
4	35116	Switch,temperature-4 P	Appelez-nous	-
5	201927P	Pressure Switch (Replaces: 36045)			$ 85.88
6	35038	Switch/ White	Appelez-nous	-
7	34829	Diffuser,lamp-clear	Appelez-nous	-
8	WP90767	Screw,8b-18 X 3/8 Ind (Replaces: 23962)		Immediately	$ 7.04
9	34824W	Cover, Top (computor)	Appelez-nous	-
10	34841	Starter,fluorescent	Appelez-nous	-
10	34836	Assy,fluorescent Light	Appelez-nous	-
11	35118	Action Switch			$ 6.25
12	35229	Timer,4 Cycle	Appelez-nous	-
13	W11233072	Screw,8-18 X 3/8 Phil Pan Hd (Replaces: 34904)		Immediately	$ 12.62
14	D504008WP	Panel,end-rh (Replaces: 34817W)			$ 19.23
15	Y00000000	See Note Control Hood Rear Panel	Appelez-nous	-
16	Y00000000	See Note Cabinet Top	Appelez-nous	-
17	34821	Control Mounting Plate	Appelez-nous	-
18	36086W	Panel,graphic-amana	Appelez-nous	-
19	35332W	Assy,timer Skirt	Appelez-nous	-
20	201501W	Knob, Timer (Replaces: 35333W)		Immediately	$ 16.52
	NOTE:	Outer Tub Cover And Gasket Tool Is For Removal Of 36025 Outer Tub Cover From Outer Tub And Installation Of 32857 Gasket In Outer Tub Cover.	Appelez-nous	-
