SELECT A DIAGRAM

01 - Agitator, Drive Bell, Washtub And Hub


02 - Cabinet Top, Loading Door & Switch


03 - Connection Blocks, Tools & Terminals


04 - Control Panel


05 - Front Panel, Base, Cabinet & Tools


06 - Miscellaeous Information


07 - Mixing Valve And Hose


08 - Motor, Belt, Pump, And Idler Assy


09 - Outer Tub, Cover, Pressure Tube


10 - Weldment/bearing & Transmission Assy

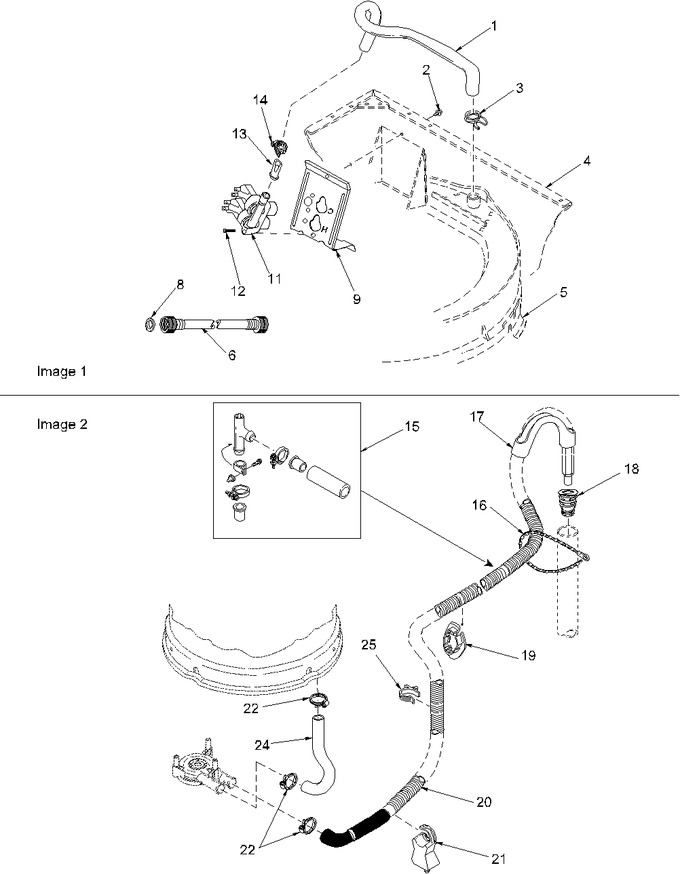

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	38155		Hose, Mix Valve To Tu				$ 26.69
2	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)		Appelez-nous	-
3	29210		Hose Clamp				$ 6.95
4	34475WP		Cabinet		Appelez-nous	-
5	39169		Cover, Outer Tub   (Replaces: 37502)				$ 66.08
6	33171		Inlet Hose, 4 Foot		Appelez-nous	-
8	20290		Washer, 19/32 Idx1.031		Appelez-nous	-
9	39407		Bracket, Valve				$ 6.95
11	39070		Valve,mixing-240 Volt				$ 3.99
12	39397		Screw		Appelez-nous	-
13	34500		Preventor, Backflow			Immediately	$ 6.95
14	36801		Clamp, Hose			Immediately	$ 9.22
15	76660		Siphon Kit   (Replaces: 562P3)			Immediately	$ 119.93
16	33489		Strap, Standpipe Bead		Appelez-nous	-
17	33615		Sleeve, Drain Hose				$ 8.35
18	40008101		Stand Pipe Adapter   (Replaces: 36878)				$ 84.69
19	32219		Relief, Strain				$ 6.95
20	WP40053901		Drain Hose   (Replaces: 38156)			Immediately	$ 61.94
21	38732		Hose Support				$ 2.18
22	WP285655		Clamp, Hose   (Replaces: 36802)			Immediately	$ 7.55
24	38351		Tub-to-pump Hose				$ 21.38
25	36014		Clip, Retainer-hose				$ 6.95

    View Diagram in Separate Window       Print Part List
