SELECT A DIAGRAM

01 - Agitator, Drive Bell, Washtub And Hub


02 - Cabinet Top, Loading Door & Switch


03 - Connection Blocks, Tools & Terminals


04 - Control Panel


05 - Front Panel, Base, Cabinet & Tools


06 - Miscellaeous Information


07 - Mixing Valve And Hose

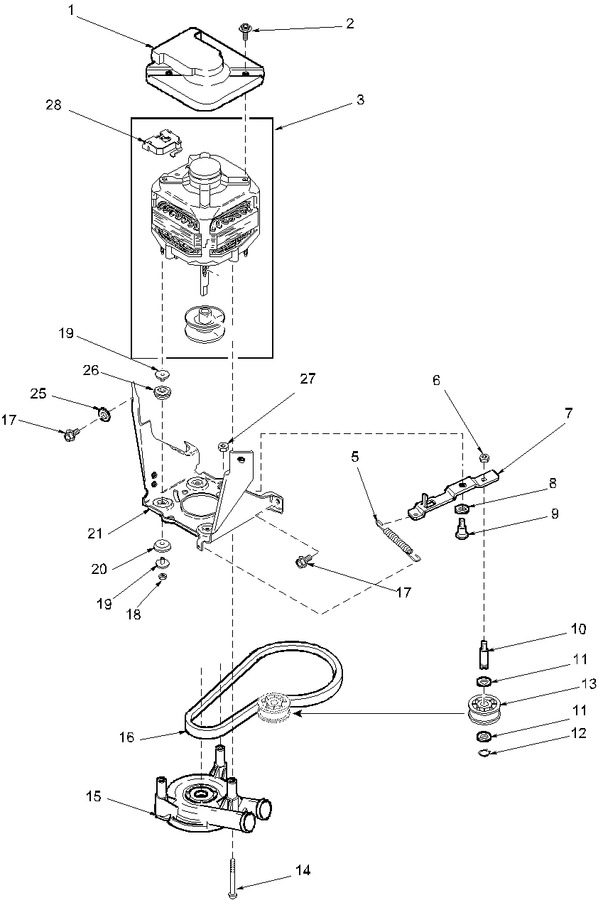

08 - Motor, Belt, Pump, And Idler Assy


09 - Outer Tub, Cover, Pressure Tube


10 - Weldment/bearing & Transmission Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34754		Motor Shield				$ 6.95
2	WP4312464		Screw   (Replaces: 36639)				$ 6.26
3	38054P		Motor Assy-240v, 50hz, 2 Speed		Appelez-nous	-
5	Y39666		Idler Lever Spring W/silencer		Appelez-nous	-
6	56156		Locknut   (Replaces: 28803)				$ 6.95
7	38011		Idler Lever			Immediately	$ 6.95
8	81392		Washer			Immediately	$ 6.95
9	27229		Shoulder Bolt			Immediately	$ 6.95
10	WP56461		Idler Shaft   (Replaces: 38228)				$ 85.03
11	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
12	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
13	205552P		Idler Pulley   (Replaces: 38225)			Immediately	$ 19.34
14	Y34565		Screw		Appelez-nous	-
15	36863P		Pump Assembly		Appelez-nous	-
16	38749		Belt, Agitate & Spin				$ 35.97
17	35369		Screw			Immediately	$ 6.95
18	WP3400029		Nut   (Replaces: 35423)			Immediately	$ 6.98
19	204449CP		Motor Mount Post   (Replaces: 38325)		Appelez-nous	-
20	204449CP		Motor Mount Lower   (Replaces: 38396)		Appelez-nous	-
21	37445		Motor Mounting Bracket		Appelez-nous	-
25	37772		Washer, Aluminum .34x				$ 6.95
26	204449CP		Motor Mount Upper   (Replaces: 38395)		Appelez-nous	-
27	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.16
28	35632		Switch, Motor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
