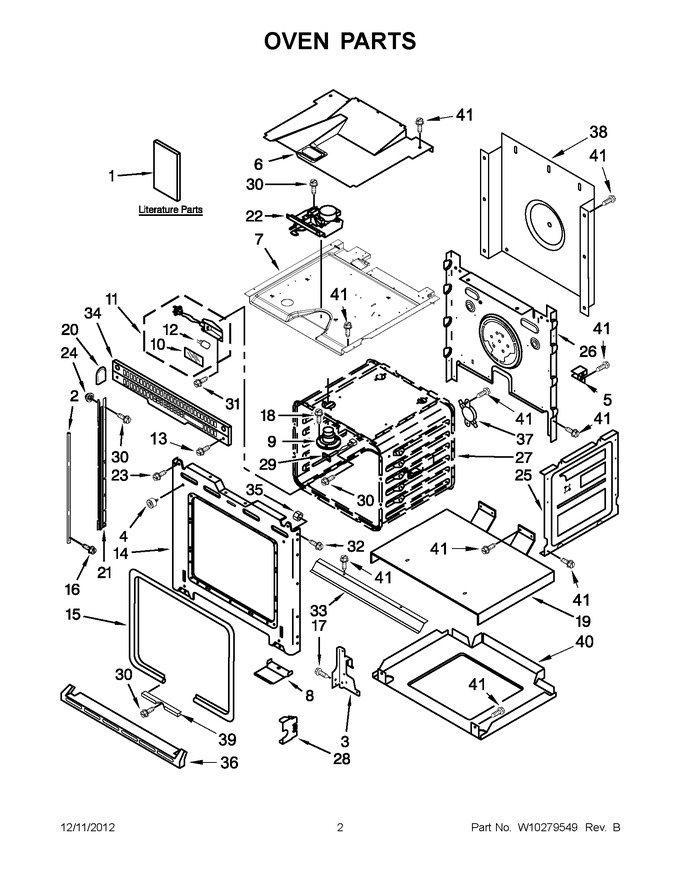

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10045010		Installation Instructions		Appelez-nous	-
1	W10223188		Guide, Use & Care (french)		Appelez-nous	-
1	W10203458		Guide, Use & Care (english)		Appelez-nous	-
1	W10185219		Tech Sheet		Appelez-nous	-
1	4449264		Guide, Easy Set		Appelez-nous	-
1	9762761		Tips, Safer Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	WPW10144985		Trim, Side Right (stainless)   (Replaces: W10144985)				$ 203.59
2	4455427		Trim, Side Left (black)				$ 93.75
2	4455374		Trim, Side Left (white)				$ 77.53
2	WPW10144986		Trim, Side Left (stainless)   (Replaces: W10144986)				$ 202.78
2	4455426		Trim, Side Right (black)		Appelez-nous	-
2	4455375		Trim, Side Right (white)				$ 79.35
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 107.47
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 103.82
4	W10105790		Bumper & Screw				$ 6.35
5	4449845		Support, Bracket		Appelez-nous	-
6	8302347		Divider, Center Vent		Appelez-nous	-
7	4455863		Chassis, Top				$ 100.80
8	W10145009		Deflector, Vent Box (white & Stainless)   (Replaces: 4452489)				$ 69.95
8	4455807		Deflector, Vent Box (black)		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
10	W10169756		Lens, Light				$ 36.16
11	WPW10307114		Assembly, Oven Light   (Replaces: W10009940)			Immediately	$ 99.44
12	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
13	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
14	9760754		Frame, Front				$ 113.71
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 149.82
16	WP8281236		Screw   (Replaces: 8281236)				$ 6.80
17	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
18	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
19	4451476		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814374		Rail, Side (left)   (Replaces: 4450582)				$ 204.20
21	814373		Rail, Side (right)   (Replaces: 4450581)				$ 203.87
22	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 259.79
23	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
24	WP4448444		Grommet   (Replaces: 4448444)				$ 6.73
25	W10782197		Side, Panel   (Replaces: 4455641)				$ 129.16
26	4452232		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	4452152		Bracket, Bottom Vent				$ 30.15
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 86.25
30	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
31	4449748		Screw				$ 12.20
32	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
33	9760675		Deflector, Vent				$ 76.62
34	W10358914		Trim, Center Vent   (Replaces: 4452265)		Appelez-nous	-
35	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
36	8300828		Assembly, Vent Bottom Trim (black)		Appelez-nous	-
36	W10151036		Assembly, Vent Bottom Trim (stainless)				$ 66.66
36	8300829		Assembly, Vent Bottom Trim (white)		Appelez-nous	-
37	WP9759242		Thermostat, Thermal Overload   (Replaces: 9759242)			Immediately	$ 77.01
38	WP4451747		Cover, Back   (Replaces: 4451747)				$ 128.63
39	WP4448933		Gasket, Retainer   (Replaces: 4448933)				$ 7.97
40	4450525		Base, Chassis		Appelez-nous	-
41	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
NI	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 162.55
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 162.19
