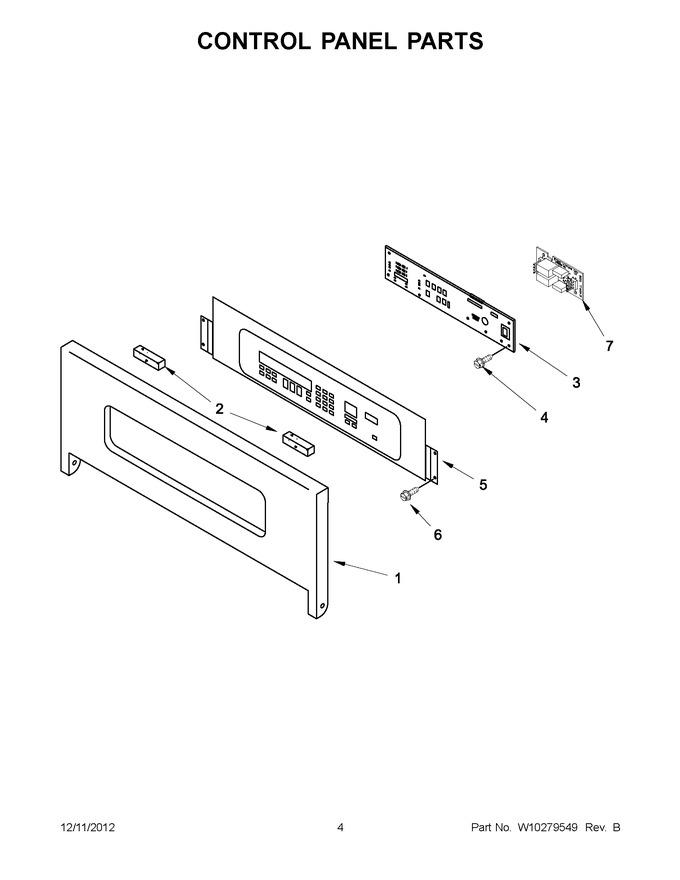

02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8300815 | Panel, Control (black) |
|
$ 117.43 | |||||
| 1 | 8300816 | Panel, Control (white) |
|
- | |||||
| 1 | WPW10144975 | Panel, Control (stainless) (Replaces: W10144975) |
|
$ 293.00 | |||||
| 2 | 4452260 | Spacer, Foam |
|
- | |||||
| 3 | 8303022 | Control, Electronic |
|
- | |||||
| 4 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 5 | 8302743 | Assembly, Membrane (black) |
|
- | |||||
| 5 | 8302746 | Assembly, Membrane (white) |
|
- | |||||
| 5 | 8302770 | Assembly, Membrane (stainless) |
|
- | |||||
| 6 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 7 | 8301848 | Latch, Sister Board |
|
$ 184.23 |
