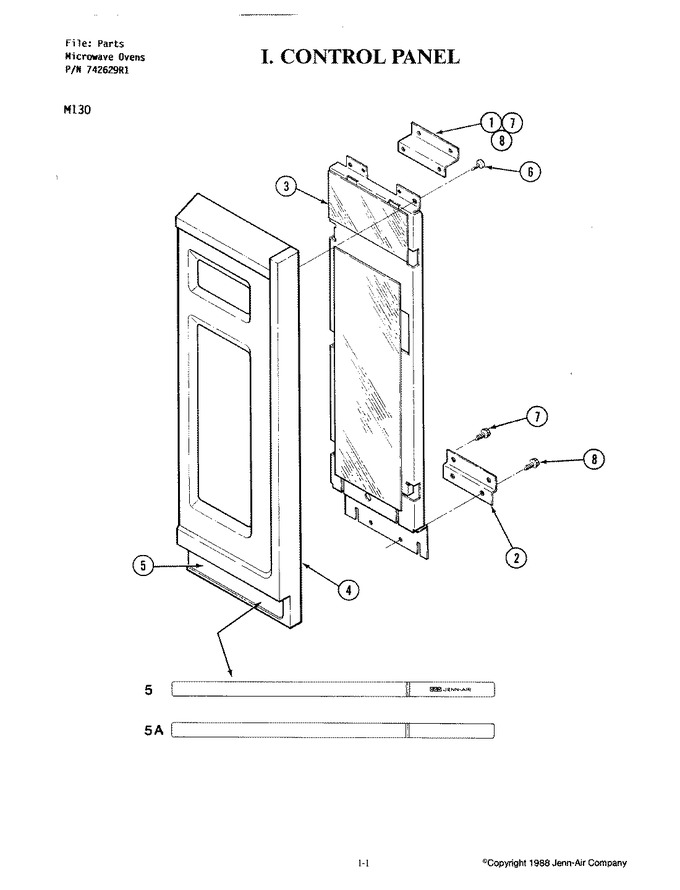

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 790100 | Bracket, Control Panel-upper | 1 |
|
- | ||||
| 2 | 790101 | Bracket, Control Panel-lower | 1 |
|
- | ||||
| 3 | 790102 | Control | 1 |
|
- | ||||
| 4 | 790103 | Frame, Control Panel | 1 |
|
- | ||||
| 5 | 790104 | Insert (logo) | 1 |
|
- | ||||
| 5 | 02100105 | Insert (no Logo) | 1 |
|
- | ||||
| 6 | 790106 | Screw | 1 |
|
- | ||||
| 7 | 790107 | Screw | 1 |
|
- | ||||
| 8 | 03020041 | Screw | 1 |
|
- |
