01 - Blower Assembly
02 - Control Panel
03 - Door
04 - Internal Controls

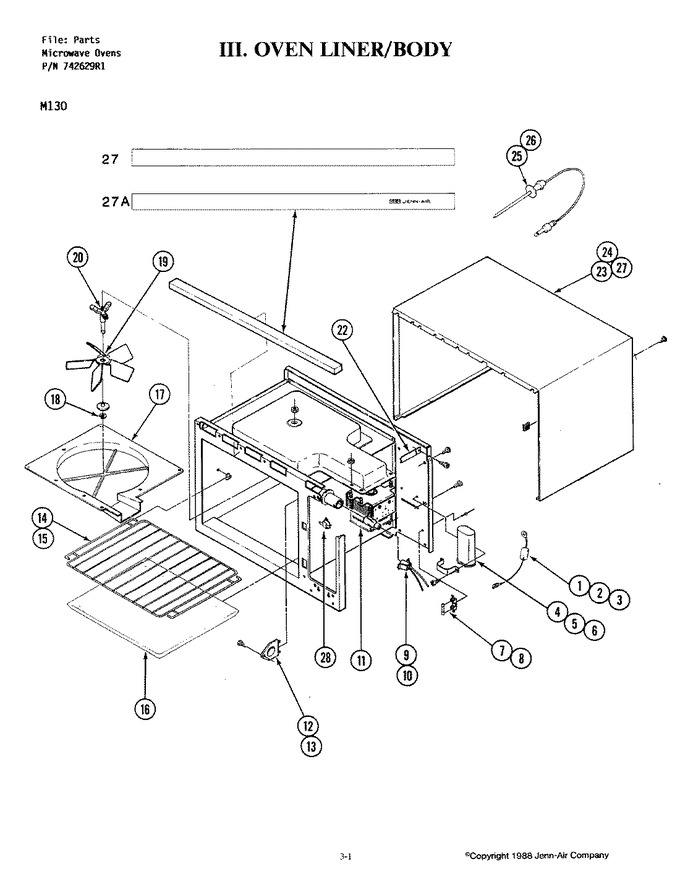

05 - Oven Liner-body
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 790162 | Diode | 1 |
|
- | ||||
| 2 | 790163 | Screw | 1 |
|
- | ||||
| 3 | 790142 | Nut | 1 |
|
- | ||||
| 4 | 790164 | Capacitor | 1 |
|
- | ||||
| 5 | 790165 | Bracket | 1 |
|
- | ||||
| 6 | 790166 | Screw | 1 |
|
- | ||||
| 7 | 790167 | Clip, Fuse | 1 |
|
- | ||||
| 8 | 790168 | Fuse | 1 |
|
- | ||||
| 9 | 790169 | Socket, Lamp | 1 |
|
- | ||||
| 10 | 790170 | Lamp | 1 |
|
- | ||||
| 11 | 790171 | Magnetron | 1 |
|
- | ||||
| 12 | 790172 | Lens, Lamp | 1 |
|
- | ||||
| 13 | 790176 | Shelf, Glass | 1 |
|
- | ||||
| 14 | 790174 | Rack, Oven | 1 |
|
- | ||||
| 15 | 790175 | Support, Rack | 1 |
|
- | ||||
| 16 | 790176 | Shelf, Glass | 1 |
|
- | ||||
| 17 | 790092 | Cover, Stirrer | 1 |
|
- | ||||
| 17 | Y03110050 | Clip | 1 |
|
- | ||||
| 18 | 790093 | Clip, Stirrer | 1 |
|
- | ||||
| 19 | 790094 | Blade, Bushing Assembly | 1 |
|
- | ||||
| 20 | 790095 | Shaft, Stirrer | 1 |
|
- | ||||
| 21 | 790096 | Nut, Shaft Stirrer | 1 |
|
- | ||||
| 22 | 790097 | Brace, Support (upper) | 1 |
|
- | ||||
| 23 | 790098 | Cabinet | 1 |
|
- | ||||
| 24 | 790099 | Clip, Cabinet | 1 |
|
- | ||||
| 25 | 790177 | Probe, Temp | 1 |
|
- | ||||
| 26 | 790178 | Jack, Probe | 1 |
|
- | ||||
| 27 | 790180 | Trim, Top (no Logo) | 1 |
|
- | ||||
| 27 | 02100177 | Trim, Top (logo) | 1 |
|
- | ||||
| 27 | W10124350 | Not Required Part Or See Note | 2 |
|
- | ||||
| 28 | Y01180008 | Switch, Temperature Limit | 1 |
|
- |
