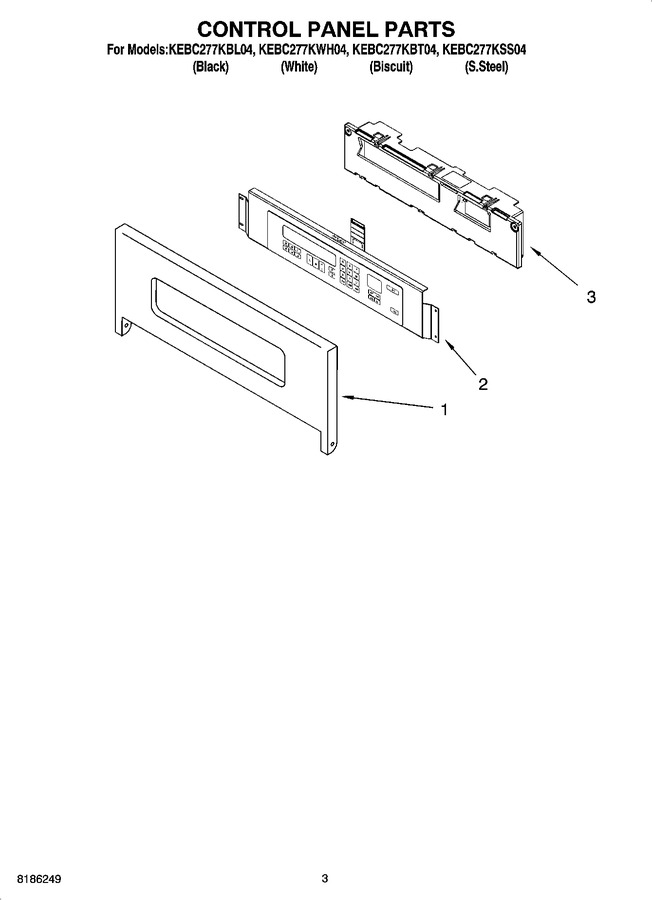

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452602 | Panel, Control (black) |
|
- | |||||
| 1 | 4452603 | Panel, Control (white) |
|
- | |||||
| 1 | 4452973 | Panel, Control (biscuit) |
|
- | |||||
| 1 | 4451790 | Panel, Control (s.steel) |
|
- | |||||
| 2 | 8302756 | Switch, Membrane (black) |
|
- | |||||
| 2 | 8302748 | Switch, Membrane (biscuit) |
|
- | |||||
| 2 | 8302757 | Switch, Membrane (white) |
|
- | |||||
| 2 | 8302771 | Switch, Membrane (s.steel) |
|
- | |||||
| 3 | 8302305 | Assy, Control |
|
- | |||||
| 3 | 8301848 | Latch, Sister Board |
|
$ 184.23 | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 |
