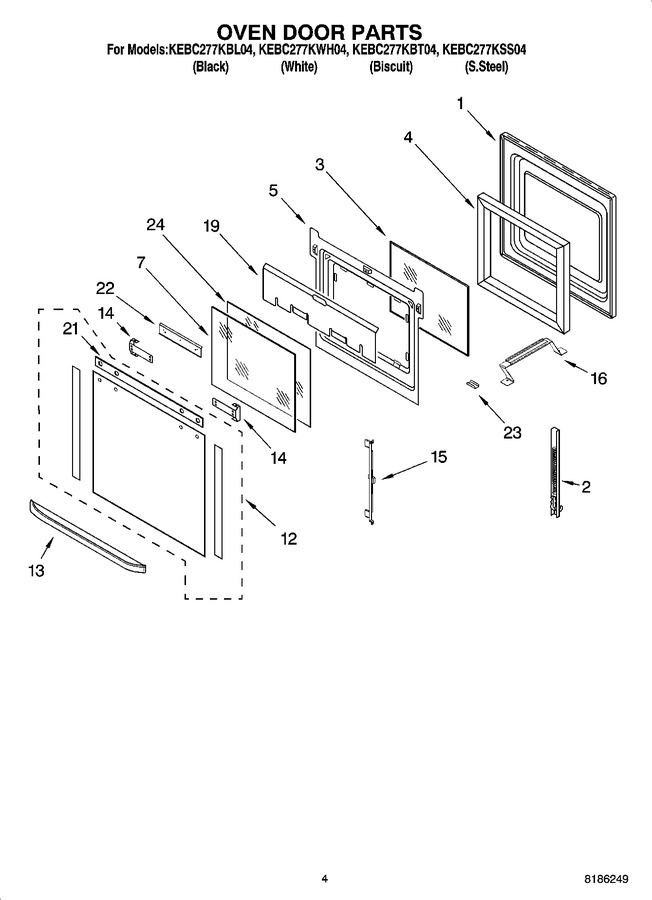

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4457126		Door Liner		Appelez-nous	-
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 6.47
2	WP9760575		Hinge, Door (rh S.steel)   (Replaces: 8300575)			Immediately	$ 58.11
2	WP9760576		Hinge, Door (lh S.steel)   (Replaces: 8300576)			Immediately	$ 50.81
2	WP9760572		Hinge, Door (l.side)   (Replaces: 8300572)				$ 95.97
2	WP9760571		Hinge, Door (r.side)   (Replaces: 8300571)			Immediately	$ 98.15
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
4	4451721		Insulation, Door				$ 37.62
5	4547131		Retainer, Glass		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	9759224		Glass, Inner				$ 81.28
12	4455393		Door Glass, Assy (black)		Appelez-nous	-
12	4452315		Door Glass, Assy (s.steel)				$ 274.20
12	4455394		Door Glass, Assy (biscuit)		Appelez-nous	-
12	4455392		Door Glass, Assy (white)		Appelez-nous	-
13	4452501		Door Handle (white)		Appelez-nous	-
13	4452500		Door Handle (black)		Appelez-nous	-
13	4452870		Door Handle (biscuit)		Appelez-nous	-
13	4455850		Door Handle (s.steel)		Appelez-nous	-
14	4455803		Bracket, Handle (r.side)				$ 30.70
14	WPW10132940		Bracket, Handle (screw)   (Replaces: 3196184)				$ 8.50
14	4455804		Bracket, Handle (l.side)				$ 25.95
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 160.71
16	9759230		Bracket (3rdglass)				$ 36.30
19	4450361		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	4452325		Seal, Door Top				$ 32.70
22	4457113		Shield, Heat (bottom)				$ 33.29
23	4450864		Retainer, Clip (white)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit)		Appelez-nous	-
23	WP3400832		Retainer, Clip (screw)   (Replaces: 3400832)			Immediately	$ 6.98
23	4450863		Retainer, Clip (black)		Appelez-nous	-
24	9759227		Glass. Inner				$ 81.36

    View Diagram in Separate Window       Print Part List
