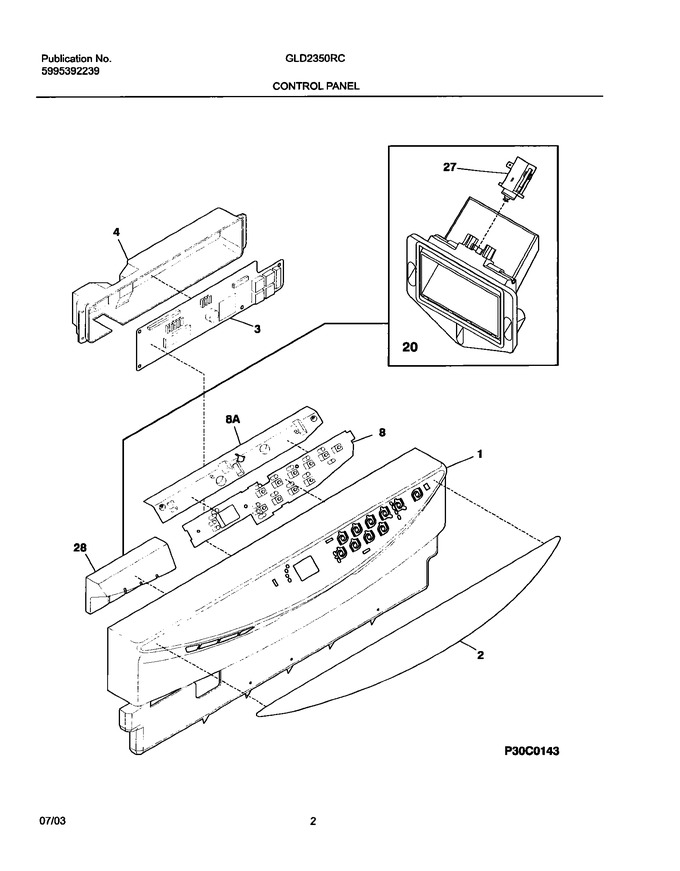

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154454404		Panel,control ,bisque		Appelez-nous	-
2	154475404		Insert,control Panel ,bisque		Appelez-nous	-
4	154460601		Cover,control		Appelez-nous	-
20	154423601		Vent Assy,active Dry ,w/actuator				$ 198.55
27	154433501		Actuator,active Dry Vent		Appelez-nous	-
28	154474401		Adapter,vent				$ 52.92
8A	154477601		Cover,switch		Appelez-nous	-
F3	154470604		Control,w/display				$ 302.56
F8	154474601		Switch,selector ,10 Pad				$ 287.02
NI	154477401		Gasket,cover		Appelez-nous	-
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
NI	154476901		Wiring Harness		Appelez-nous	-
NI	154399022		Label,energy Guide		Appelez-nous	-
NI	154476601		Screw,pan Head ,6-19 X 1/4		Appelez-nous	-
