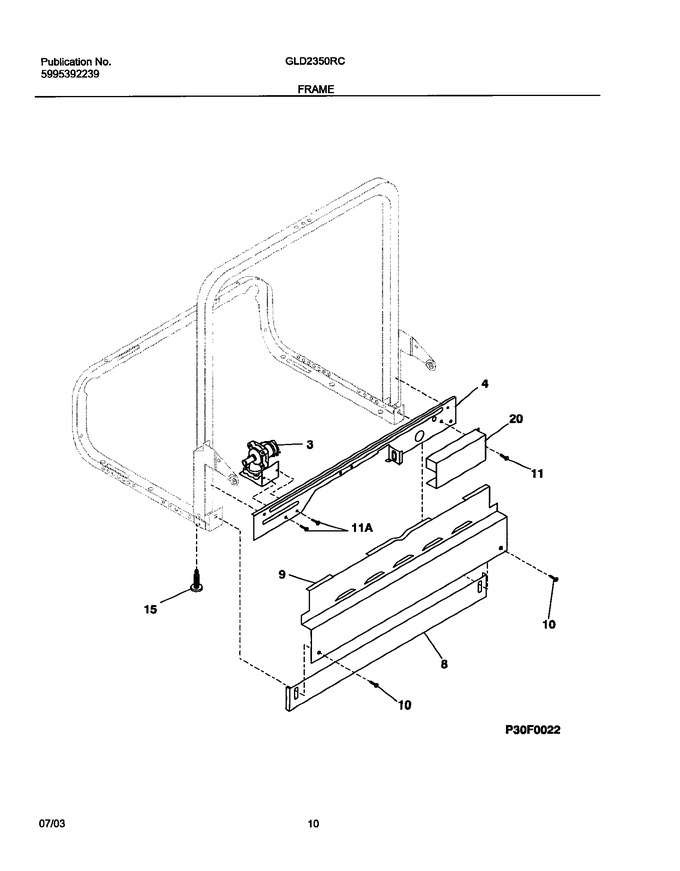

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304508587		Brace,front Frame   (Replaces: 154208701)				$ 28.92
8	5304529111		Toeplate,adjustable ,bisque   (Replaces: 154322905)				$ 24.97
9	5304529111		Kickplate Assy,bisque ,w/ Foam   (Replaces: 154397204)				$ 24.97
10	154371303		Screw,phillips Head ,bisque				$ 10.61
11	808326801		Screw,no.8-18 X .375   (Replaces: 154409401)				$ 2.84
15	154419301		Screw,leveling				$ 17.17
20	154209601		Cover-junction Box				$ 39.80
11A	154200601		Screw,no.10-16 X 3/8				$ 7.98
F3	154637401		Valve,water   (Replaces: 154445901)			Immediately	$ 21.36
NI	154041001		Screw,plask No.1 ,10-10 X 9/16		Appelez-nous	-
NI	154200602		Screw,10-16 X 3/8 ,hex				$ 10.21

    View Diagram in Separate Window       Print Part List
