01 - Cover Sheet
02 - Control Panel

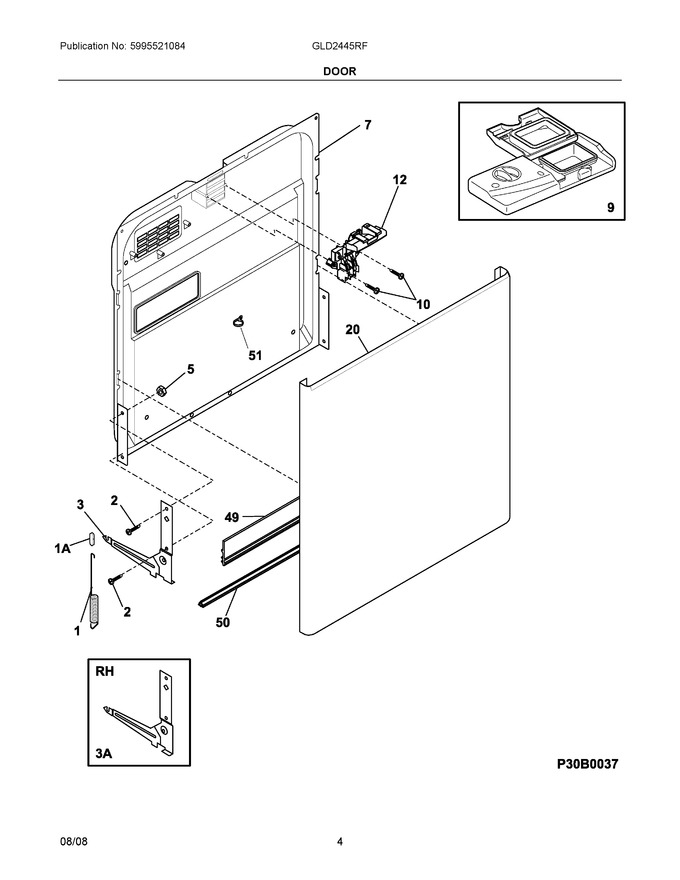

03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring, Door, (2) |
|
Immediately | $ 36.31 | ||||
| 2 | 154093301 | Screw, Arm Assy, (4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304513274 | Arm Assy, Lh (Replaces: 154597503) |
|
Immediately | $ 66.56 | ||||
| 5 | 154079601 | Nut, Arm Assy, And Handle Mtg. |
|
$ 0.41 | |||||
| 7 | 154494603 | Liner, Door Assy., Grey |
|
$ 182.70 | |||||
| 9 | 5304507354 | Dispenser, Det/rinse Aid, W/read (Replaces: 154542104) |
|
Immediately | $ 77.60 | ||||
| 10 | 154103702 | Screw, Latch Mtg, (2) |
|
$ 13.46 | |||||
| 12 | 154529403 | Latch Assy, Black |
|
$ 177.51 | |||||
| 20 | 154436803 | Door Assy, Black, Outer |
|
$ 146.32 | |||||
| 49 | 809006501 | Gasket, Door, Bottom (Replaces: 154576501) |
|
Immediately | $ 36.22 | ||||
| 50 | 154211401 | Support, Door Hinge |
|
$ 25.69 | |||||
| 51 | 154320301 | Clamp, Drip Loop, Wire |
|
$ 62.69 | |||||
| 1A | 154325201 | Linkage, Door Spring, (2) |
|
Immediately | $ 27.27 | ||||
| 3A | 5304513274 | Arm Assy, Rh (Replaces: 154596103) |
|
Immediately | $ 66.56 | ||||
| NI | 5304538695 | Insulation, Door (Replaces: 154253201) |
|
- | |||||
| NI | 154529101 | Pin, Arm Assy |
|
$ 4.62 | |||||
| NIA | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| NIA | 5304428306 | Screw, Door Mtg., (2) |
|
$ 4.67 |
