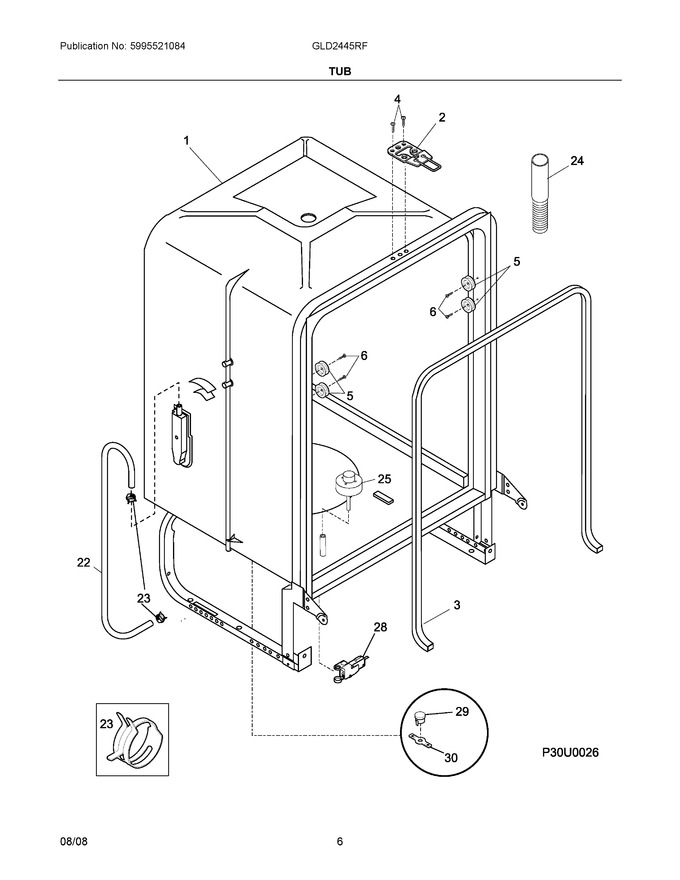

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154594101 | Tub Assy, W/frame Parts |
|
$ 277.78 | |||||
| 2 | 154662601 | Strike, Door |
|
Immediately | $ 39.69 | ||||
| 3 | 8581548276014 | Gasket, Tub (Replaces: 154561001) |
|
Immediately | $ 26.30 | ||||
| 4 | 154200602 | Screw, 10-16 X 3/8, Hex |
|
$ 10.21 | |||||
| 5 | 5304506916 | Roller, Tub, Grey, (8), W/screw+washer (Replaces: 5304456938) |
|
Immediately | $ 33.00 | ||||
| 6 | 5303943103 | Screw, W/washer, (8) |
|
Immediately | $ 17.72 | ||||
| 22 | 5304523457 | Tubing, Water Inlet (Replaces: 154446002) |
|
Immediately | $ 14.03 | ||||
| 23 | 5304538466 | Clamp, Tubing, (2) (Replaces: 5303318539) |
|
$ 2.31 | |||||
| 24 | 807117001 | Hose, Drain (Replaces: 154606701) |
|
Immediately | $ 36.14 | ||||
| 25 | 5304532207 | Float, Grey (Replaces: 154209702) |
|
Immediately | $ 6.89 | ||||
| 28 | 154773201 | Switch Assy, Float (Replaces: 154408701) |
|
Immediately | $ 55.29 | ||||
| 29 | 154290204 | Thermostat, Re-settable |
|
Immediately | $ 64.49 | ||||
| 30 | 154241101 | Retainer, Thermostat |
|
$ 3.62 | |||||
| NI | 154641601 | Insulation, Blanket (Replaces: 154447102) |
|
$ 6.15 | |||||
| NI | 5304520581 | Insulation, Tub Back (Replaces: 154447301) |
|
$ 57.83 | |||||
| NI | 154701001 | Gasket, Tub, Corner, (2) (Replaces: 154685101) |
|
Immediately | $ 17.00 | ||||
| NI | 5300807270 | Screw, (2), Countertop Mtg. |
|
$ 6.72 | |||||
| NI | 154041001 | Screw, Plask #1, 10-10 X 9/16 |
|
- | |||||
| NIA | 154297701 | Screw, Retainer-thermo |
|
$ 13.46 |
