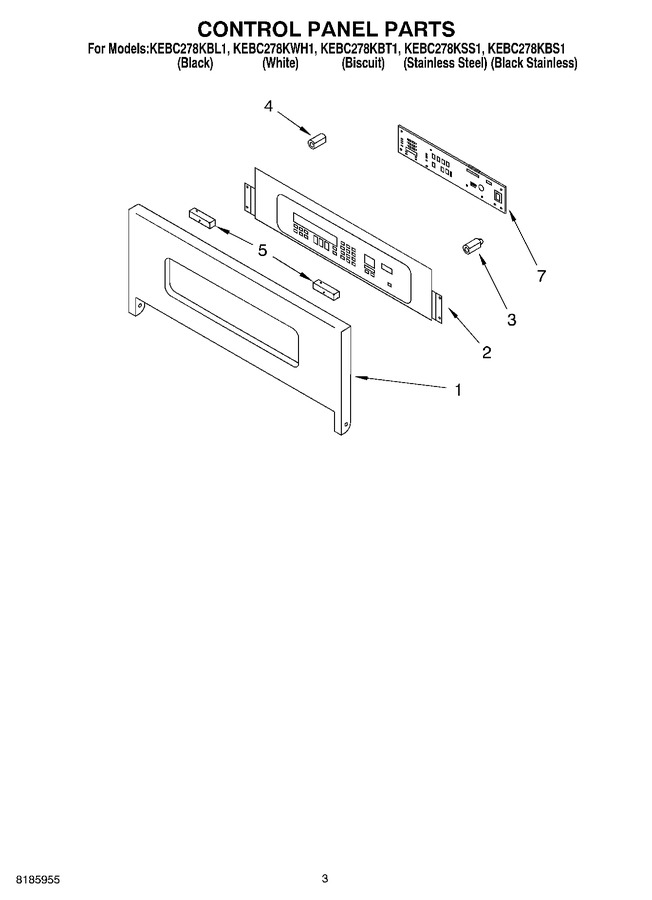

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4452602		Panel, Control (black)		Appelez-nous	-
1	4452603		Panel, Control (white)		Appelez-nous	-
1	4452973		Panel, Control (biscuit)		Appelez-nous	-
1	4451790		Panel, Control (stainless Steel)		Appelez-nous	-
2	4455403		Switch, Membrane (black)		Appelez-nous	-
2	4455409		Switch, Membrane (white)		Appelez-nous	-
2	4455415		Switch, Membrane (biscuit)		Appelez-nous	-
2	4452376		Switch, Membrane (stainless Steel)		Appelez-nous	-
3	4452248		Insulator, Board		Appelez-nous	-
4	4452249		Insulator, Board Support		Appelez-nous	-
4	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
5	4452260		Spacer, Foam		Appelez-nous	-
7	4453379		Microcomputer		Appelez-nous	-
7	3400406		Screw		Appelez-nous	-
