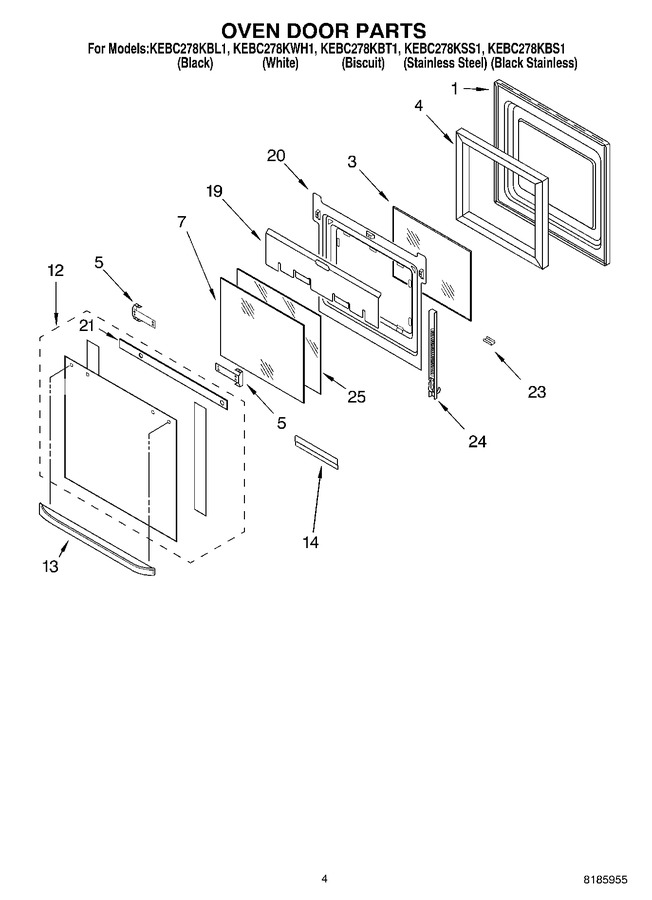

03 - Oven Door
04 - Internal Oven
05 - Top Venting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4455617 | Door Liner |
|
- | |||||
| 3 | WP4449253 | Glass, Inner (Replaces: 4449253) |
|
$ 151.75 | |||||
| 4 | 4451721 | Insulation, Door |
|
$ 37.62 | |||||
| 5 | W10276642 | Bracket, Handle (screw) (Replaces: 4451040) |
|
$ 5.49 | |||||
| 5 | 4455804 | Bracket, Handle (l.side) |
|
$ 25.95 | |||||
| 5 | 4455803 | Bracket, Handle (r.side) |
|
$ 30.70 | |||||
| 5 | 4452960 | Bracket, Handle (left Hand Stainless Steel) |
|
- | |||||
| 5 | 4452959 | Bracket, Handle (right Hand) |
|
- | |||||
| 7 | WP4449257 | Glass, Inner (Replaces: 4449257) |
|
Immediately | $ 178.55 | ||||
| 12 | 4455393 | Door Glass, Assy (black) |
|
- | |||||
| 12 | 4452315 | Door Glass, Assy (stainless Steel) |
|
$ 274.20 | |||||
| 12 | 4455394 | Door Glass, Assy (biscuit) |
|
- | |||||
| 12 | 4455392 | Door Glass, Assy (white) |
|
- | |||||
| 13 | 4452500 | Door Handle (black Model) |
|
- | |||||
| 13 | 4452087 | Door Handle (stainless Steel) |
|
- | |||||
| 13 | 4452870 | Door Handle (biscuit) |
|
- | |||||
| 13 | 4452501 | Door Handle (white Model) |
|
- | |||||
| 14 | 4451668 | Retainer, Glass |
|
- | |||||
| 14 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 19 | 4450361 | Shield, Heat |
|
- | |||||
| 19 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | 8300777 | Retainer, Glass |
|
- | |||||
| 21 | 4452325 | Seal, Door Top |
|
$ 32.70 | |||||
| 23 | 4451432 | Retainer, Clip (stainless Steel) |
|
- | |||||
| 23 | 4450863 | Retainer, Clip (black) |
|
- | |||||
| 23 | 4450864 | Retainer, Clip (white) |
|
- | |||||
| 23 | 4452119 | Retainer, Clip (biscuit) |
|
- | |||||
| 24 | WP4449743 | Hinge, Door (screw) (Replaces: 4449743) |
|
$ 6.47 | |||||
| 24 | WP9760576 | Hinge, Door (l.side (clear)) (Replaces: 8300576) |
|
Immediately | $ 50.81 | ||||
| 24 | WP9760575 | Hinge, Door (r.side (clear)) (Replaces: 8300575) |
|
Immediately | $ 58.11 | ||||
| 24 | WP9760572 | Hinge, Door (l.side (white)) (Replaces: 8300572) |
|
$ 95.97 | |||||
| 24 | WP9760571 | Hinge, Door (r.side (white)) (Replaces: 8300571) |
|
Immediately | $ 98.15 | ||||
| 25 | 4455256 | Glass, Inner |
|
- |
