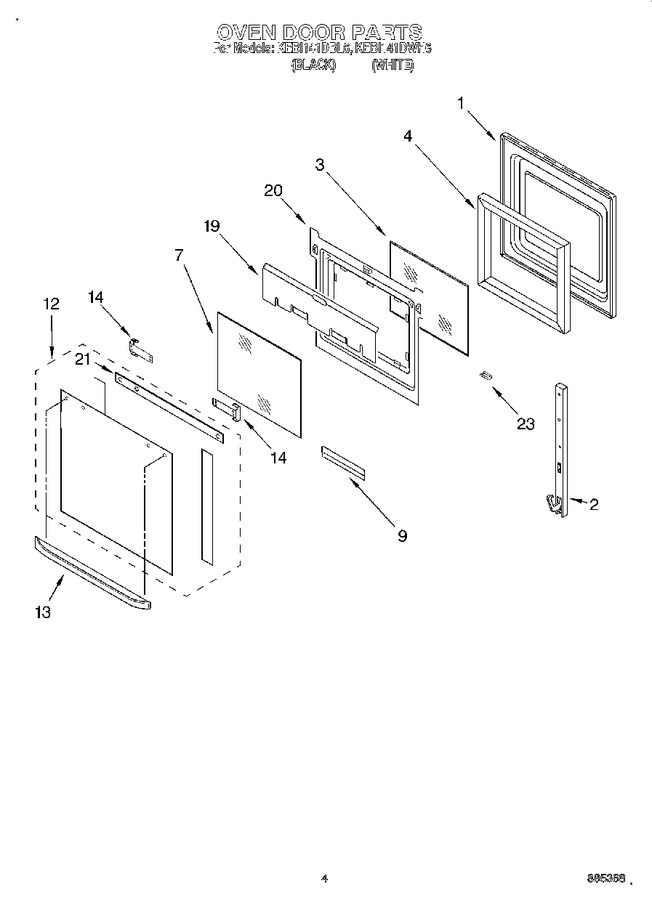

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Liner, Door   (Replaces: 4451717)				$ 301.61
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
2	4451171		Hinge, Door		Appelez-nous	-
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 157.97
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 23.08
7	4449251		Glass, Inner		Appelez-nous	-
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	4451668		Retainer, Glass		Appelez-nous	-
12	4452068		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452069		Door Glass, Assy (white Model)		Appelez-nous	-
13	4448408		Door Handle (black Model)		Appelez-nous	-
13	4448409		Door Handle (white Model)		Appelez-nous	-
14	4450813		Bracket, Handle				$ 24.20
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4450360		Shield, Heat		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4451669		Retainer, Glass		Appelez-nous	-
21	4451672		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
