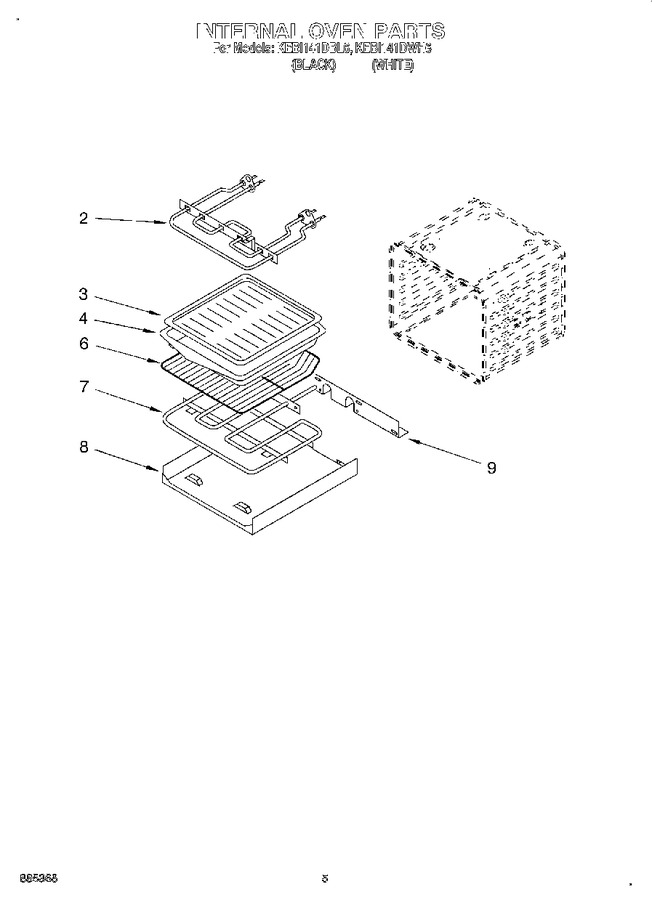

04 - Internal Oven
05 - Top Venting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WPW10207400 | Element, Broil (Replaces: 4452156) |
|
Immediately | $ 247.31 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 3 | 4396923 | Grill, Broiler (Replaces: 3147563) |
|
Immediately | $ 52.04 | ||||
| 4 | 4396923 | Pan, Broiler (Replaces: 3147845) |
|
Immediately | $ 52.04 | ||||
| 6 | 4448716 | Rack, Oven |
|
$ 72.70 | |||||
| 7 | 4451175 | Element, Bake (Replaces: 4452155) |
|
Immediately | $ 126.84 | ||||
| 7 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 8 | 4455035 | Tray, Bake (Replaces: 4448721) |
|
- | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 9 | 4450039 | Cover, Bake Tray |
|
$ 78.95 | |||||
| 9 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 |
