View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

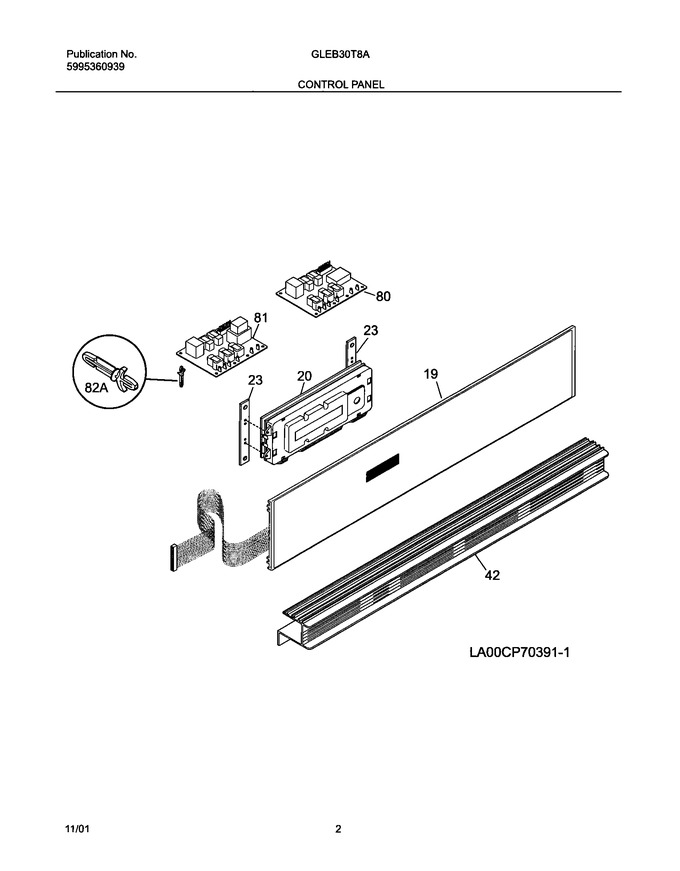

03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 318030134 | Panel,control ,white |
|
- | |||||
| 23 | 318015110 | Bracket-clock Mtg |
|
- | |||||
| 42 | 318027405 | Trim-vent,white |
|
- | |||||
| 82A | 5303317199 | Support, Snap-in, (3) |
|
$ 36.75 | |||||
| F20 | 318010501 | Clock/timer, Eoc |
|
$ 666.75 | |||||
| F80 | 318022001 | Relay Board |
|
Immediately | $ 489.91 | ||||
| F81 | 318022002 | Relay Board,w/transformer |
|
$ 482.74 | |||||
| NI | 3201861 | Screw,6 X 0.375 |
|
$ 0.76 |
