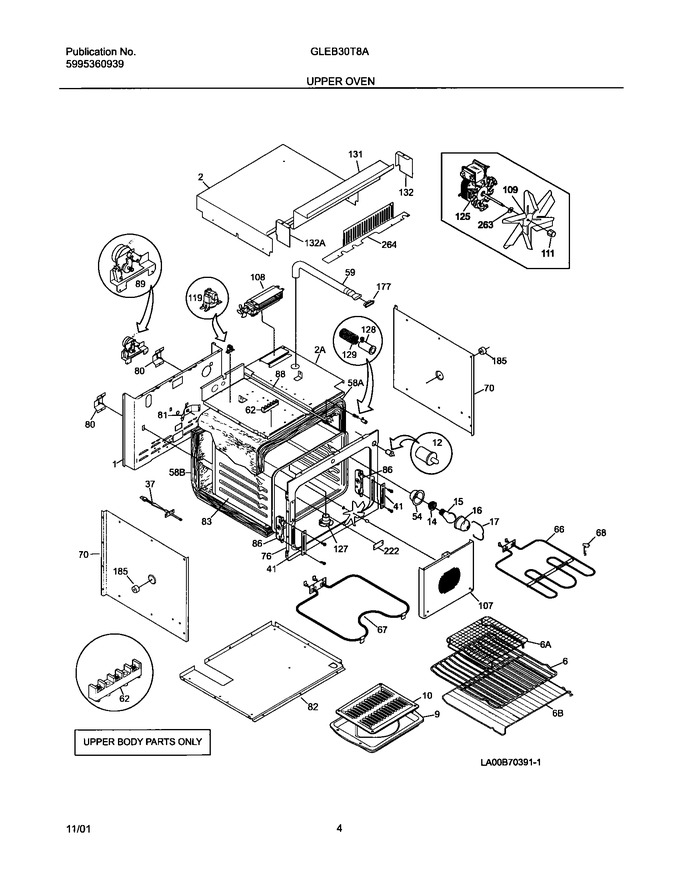

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066402		Panel,main Back		Appelez-nous	-
2	318102101		Shield-oven Top		Appelez-nous	-
6	318025314		Rack,shelf ,30`` ,oven   (Replaces: 5303310522)			Immediately	$ 148.70
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
12	318394803		Switch,oven Light ,door Frame   (Replaces: 318089910)			Immediately	$ 44.23
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
59	318072506		Tube-oven Vent		Appelez-nous	-
66	318255605		Element,broil ,2750 W   (Replaces: 5303310513)			Immediately	$ 192.78
68	5304403015		Support,element Hanger				$ 35.04
70	5303300142		Shield-insulation		Appelez-nous	-
76	318056202		Front-oven		Appelez-nous	-
80	318192400		Spring,oven				$ 312.53
81	5303320846		Plate,oven Mtg				$ 51.50
82	318072301		Shield-oven Bottom		Appelez-nous	-
83	318089609		Liner,oven		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
107	318119600		Cover-fan		Appelez-nous	-
109	5303311203		Blade,fan				$ 42.84
111	5303311205		Nut-fan Retainer		Appelez-nous	-
127	318317100		Adapter,vent Tube ,with Converter   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
131	318102301		Cover-control Housing		Appelez-nous	-
132	318101700		End,cover ,rh ,control Housing		Appelez-nous	-
177	318053800		Gasket Vent		Appelez-nous	-
185	318531800		Spacer-oven Shield   (Replaces: 318014700)				$ 12.76
222	318080000		Plate,oven Temp Probe		Appelez-nous	-
263	5303322885		Spacer,fan Blade		Appelez-nous	-
2A	318071705		Shield-oven Top		Appelez-nous	-
58A	318133744		Insulation,oven Wrapper		Appelez-nous	-
58B	318133769		Insulation,oven Back		Appelez-nous	-
6A	5303311206		Shelf,broiler Pan		Appelez-nous	-
6B	318025314		Shelf-oven   (Replaces: 318025400)			Immediately	$ 148.70
F108	318073012		Motor,blower		Appelez-nous	-
F119	318004900		Switch,thermal				$ 60.25
F125	5303311202		Motor-convection				$ 114.07
F132	318101701		End,cover ,lh ,control Housing		Appelez-nous	-
F14	316116400		Receptacle, Oven Light   (Replaces: 5308011085)			Immediately	$ 56.10
F15	3201908		Light,oven		Appelez-nous	-
F37	316217002		Sensor,oven Temp Probe   (Replaces: 316111203)			Immediately	$ 61.23
F62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
F67	318255006		Element,bake ,3000 W   (Replaces: 5303310512)			Immediately	$ 185.14
F89	318095956		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095934)			Immediately	$ 143.83
NI	318120710		Switch,cooktop Shutoff		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318078507		Box & Wires Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
