SELECT A DIAGRAM

01 - Control Panel


02 - Control Center (pd)


03 - Cabinet-front & Top


04 - Door Shroud & Door Latch Assembly


05 - Door & Front Panel


06 - Cabinet-rear


07 - Spinner Assembly & Outer Tub Cover


08 - Base


09 - Dispensing System


10 - Outer Tub


11 - Motor & Motor Control

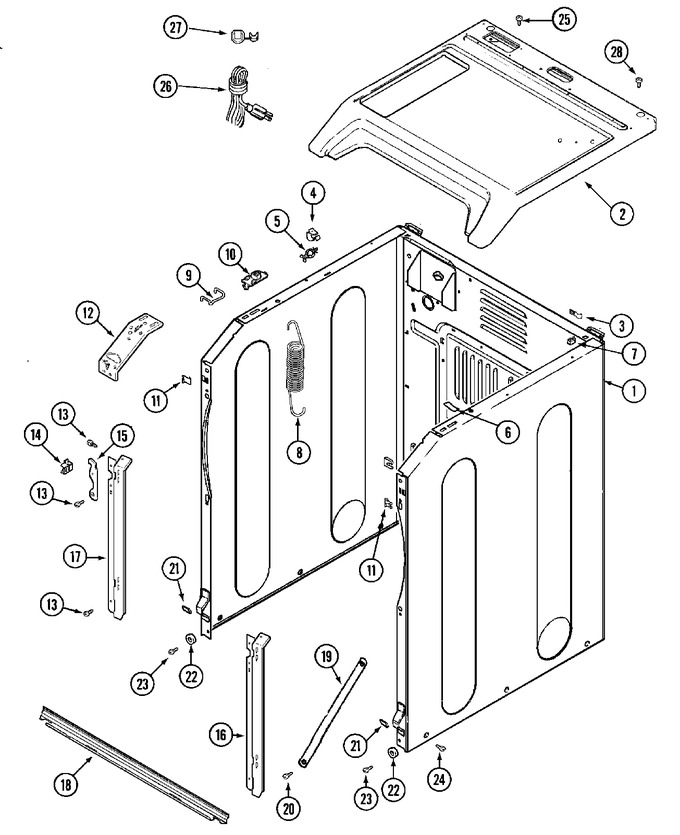

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22002245		(cabinet Only)		Appelez-nous	-
001	NLA		Cabinet (wht)	10	Appelez-nous	-
002	33001797		Cover, Top (wht)	10	Appelez-nous	-
003	WP489128		Screw, Bracket   (Replaces: 22001996)	10			$ 9.79
003	22002178		Bracket, Air Dome Hose	10	Appelez-nous	-
003	NLA		Tie, Wire	10	Appelez-nous	-
004	Y310376		Clip, Wire Harness	10	Appelez-nous	-
005	315471		Retainer, Wire	10	Appelez-nous	-
006	33001836		Strap, Top Cover Support	10	Appelez-nous	-
007	310933		Fastener	10	Appelez-nous	-
008	22002100		Spring	10			$ 22.82
009	22002098		Support, Spring	10	Appelez-nous	-
010	22001997		Spacer, Top Cover	10	Appelez-nous	-
011	22002049		Clip, Front Panel	10			$ 8.40
012	NLA		Brace, Corner	10	Appelez-nous	-
013	W11573574		Screw, Shroud Support   (Replaces: 22001995)	10		Immediately	$ 12.62
014	22002001		Support, Hinge	10	Appelez-nous	-
015	22002247		Hook, Security	10	Appelez-nous	-
016	22002034		Bracket, Shroud Support (rt)	10	Appelez-nous	-
017	22002035		Bracket, Shroud Support (lt)	10	Appelez-nous	-
018	22001993		Bridge, Shroud Support	10	Appelez-nous	-
019	W11573574		Screw, Cross Brace   (Replaces: 22001995)	10		Immediately	$ 12.62
019	22002231		Cross Brace, Cabinet	10	Appelez-nous	-
020	W11573574		Screw, Cross Brace   (Replaces: 22001995)	10		Immediately	$ 12.62
021	22002239		Clip, Lower Front Panel	10			$ 5.84
022	22002025		Disc, Front Panel Spacer	10	Appelez-nous	-
023	W11573574		Screw, Front Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
024	213007		Screw, Cabinet	10			$ 10.99
025	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	10			$ 9.79
026	22001178		Cord, Power	10	Appelez-nous	-
027	211881		Grommet, Cord	10	Appelez-nous	-
028	WP489128		Screw   (Replaces: 912365)	10			$ 9.79

    View Diagram in Separate Window       Print Part List
