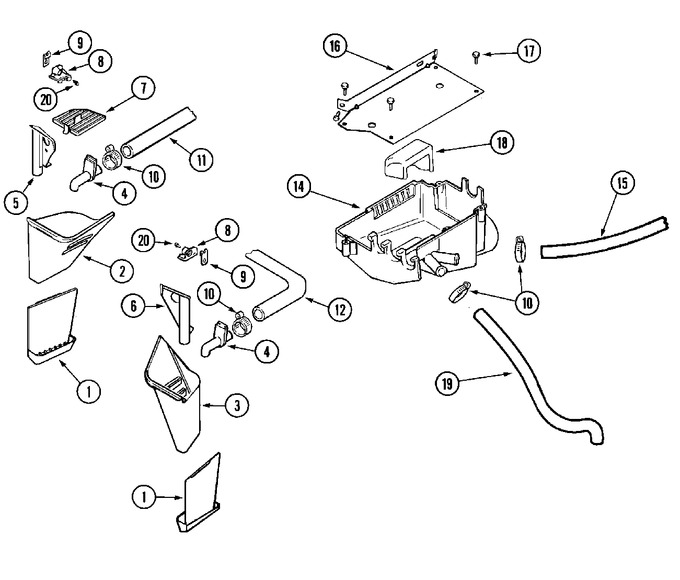

09 - Dispensing System


10 - Outer Tub


11 - Motor & Motor Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33002195		Grate, Overflow (lt)	10	Appelez-nous	-
001	33002196		Grate, Overflow (rt)	10	Appelez-nous	-
002	33002197		Cup, Bleach Dispenser	10			$ 76.91
003	33002198		Cup, Fabric Softener Dispenser	10			$ 51.73
004	33002199		Spout, Dispenser Fill	10			$ 5.51
005	33002200		Cap, Bleach Dispenser	10			$ 31.64
006	33002201		Cap, Fabric Softener	10			$ 32.22
007	33002204		Screen, Bleach Cup	10			$ 31.64
008	33002205		Retainer, Bleach Cup	10	Appelez-nous	-
009	33002206		Fastener, J Type	10	Appelez-nous	-
010	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
011	33002207		Hose, Bleach	10			$ 22.61
012	33002208		Hose, Fabric Softener	10	Appelez-nous	-
013	33001989		Retainer, Wire	10	Appelez-nous	-
013	33002209		Retainer, Fabric Softener	10	Appelez-nous	-
014	22002439		Vent, Tub ----sub	10	Appelez-nous	-
014	WP33002917		Screw, Tub Vent   (Replaces: 33001855)	10		Immediately	$ 6.90
015	22002464		Hose, Vent	10	Appelez-nous	-
016	33002189		Bracket, Vent Mounting	10	Appelez-nous	-
017	33002190		Screw, Bracket	10	Appelez-nous	-
018	22002440		Deflector, Vent	10	Appelez-nous	-
019	33002193		Shower Hose	10			$ 25.73
020	W11772394		Screw, Retainer   (Replaces: 22002230)	10		Immediately	$ 10.94
