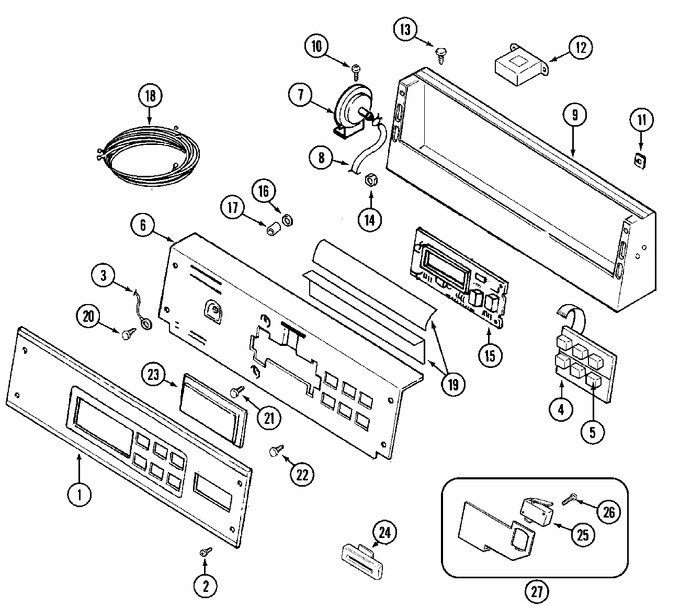

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22002346 | Panel, Control | 10 |
|
- | ||||
| 001 | WPW10133264 | Lock, Access Door (Replaces: 22002349) | 10 |
|
$ 125.12 | ||||
| 002 | WPW10131119 | Screw, Control Panel (Replaces: 215506) | 10 |
|
$ 6.26 | ||||
| 003 | 205810 | Wire, Ground | 10 |
|
- | ||||
| 004 | WPW10135389 | Control Switch Assembly (Replaces: 206808) | 10 |
|
$ 125.66 | ||||
| 004 | W10756178 | Screw, Control Switch (Replaces: 215527) | 10 |
|
$ 5.39 | ||||
| 005 | WPW10424308 | Pushbutton, Control Switch (Replaces: 215517) | 10 |
|
Immediately | $ 18.38 | |||
| 006 | 22002347 | Bracket, Switch & Back (wht) | 10 |
|
- | ||||
| 006 | 22003090 | Bracket, Switch & Back (wht) | 48 |
|
- | ||||
| 007 | WP22002921 | Switch, Pressure (Replaces: 22002048) | 10 |
|
$ 166.10 | ||||
| 007 | 22002994 | Switch, Pressure | 44 |
|
- | ||||
| 008 | 22002010 | Hose, Pressure Switch | 10 |
|
$ 34.16 | ||||
| 008 | NLA | Clip, Pressure Switch Hose | 10 |
|
- | ||||
| 009 | 22003101 | Console (wht) | 48 |
|
- | ||||
| 009 | 33001957 | Console (wht) | 10 |
|
- | ||||
| 010 | WP489128 | Screw, Console (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 011 | 215003 | Fastener, Screw | 10 |
|
- | ||||
| 012 | WPW10131839 | Transformer (Replaces: 22001960) | 10 |
|
Immediately | $ 120.20 | |||
| 013 | 211251 | Screw, Transformer | 10 |
|
- | ||||
| 014 | 22001419 | Nut, Transformer | 10 |
|
- | ||||
| 015 | 22004335 | Board, Control Washer (Replaces: 22002332) | 10 |
|
- | ||||
| 016 | M0282005 | Locknut, Control Board (Replaces: 912077) | 10 |
|
$ 7.07 | ||||
| 017 | 33001204 | Standoff, Circuit Board | 10 |
|
- | ||||
| 018 | 22002351 | Wire Harness, Main | 10 |
|
- | ||||
| 018 | 22002404 | Wire Harness, Main | 25 |
|
- | ||||
| 018 | NLA | Wire Harness, Main----na | 30 |
|
- | ||||
| 019 | 22001511 | Deflector, Water (w/adhesive) | 10 |
|
- | ||||
| 020 | WP489399 | Screw, Ground Wire (Replaces: 211252) | 10 |
|
$ 6.26 | ||||
| 021 | 215526 | Screw, Circuit Board | 10 |
|
- | ||||
| 022 | W10756178 | Screw, Back Bracket (Replaces: 215527) | 10 |
|
$ 5.39 | ||||
| 023 | WPW10131114 | Cover, Display (Replaces: 22001962) | 10 |
|
$ 42.79 | ||||
| 023 | 33002090 | Harness, Service | 10 |
|
- | ||||
| 024 | WPW10131115 | Bezel (Replaces: 22001976) | 10 |
|
$ 7.63 | ||||
| 024 | W11165684 | Cam, Locking (Replaces: 33002092) | 10 |
|
$ 8.20 | ||||
| 025 | 22002367 | Switch, Sensor | 10 |
|
- | ||||
| 026 | 22002368 | Screw, Switch | 10 |
|
- | ||||
| 027 | 33002093 | Bracket Assy., Switch (incld. Switch, 2 Screws, & | 10 |
|
- |
