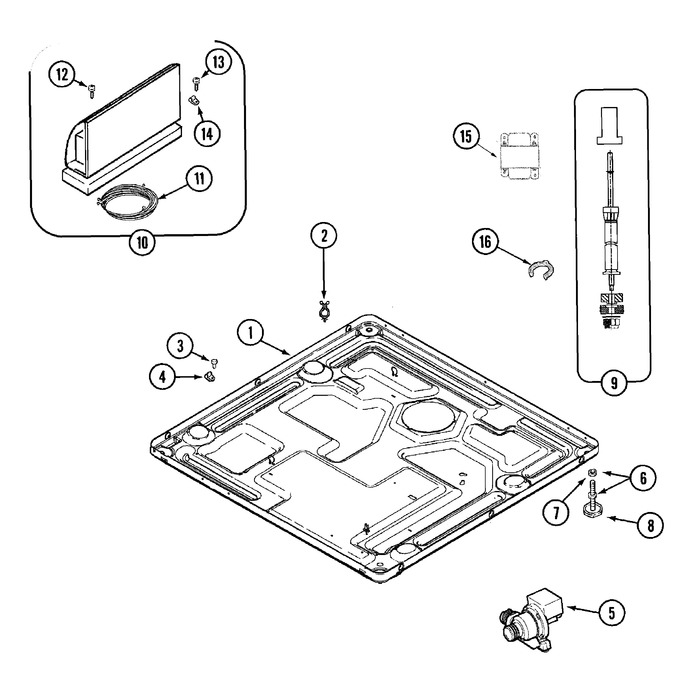

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003435		Base   (Replaces: 22002240)	13			$ 309.12
002	315471		Retainer, Wire	10	Appelez-nous	-
003	WP90767		Screw, Wire Harness Clip   (Replaces: 212276)	10		Immediately	$ 7.04
004	WP308605		Clip, Wire Harness   (Replaces: 22002014)	10			$ 10.08
005	WP22003059		Pump   (Replaces: 22001982)	10		Immediately	$ 175.14
005	WP22003059		Pump, Drain (80 Watt)   (Replaces: 22002939)	10		Immediately	$ 175.14
006	WP8563585		Adjustable Leg & Nut   (Replaces: 22001915)	10		Immediately	$ 13.28
007	WP62739		Nut, Leg   (Replaces: Y052740)	10			$ 6.85
008	WP210684		Foot, Rubber   (Replaces: 210684)	10		Immediately	$ 14.09
009	22001988		Strut Assy-rear	10			$ 200.90
