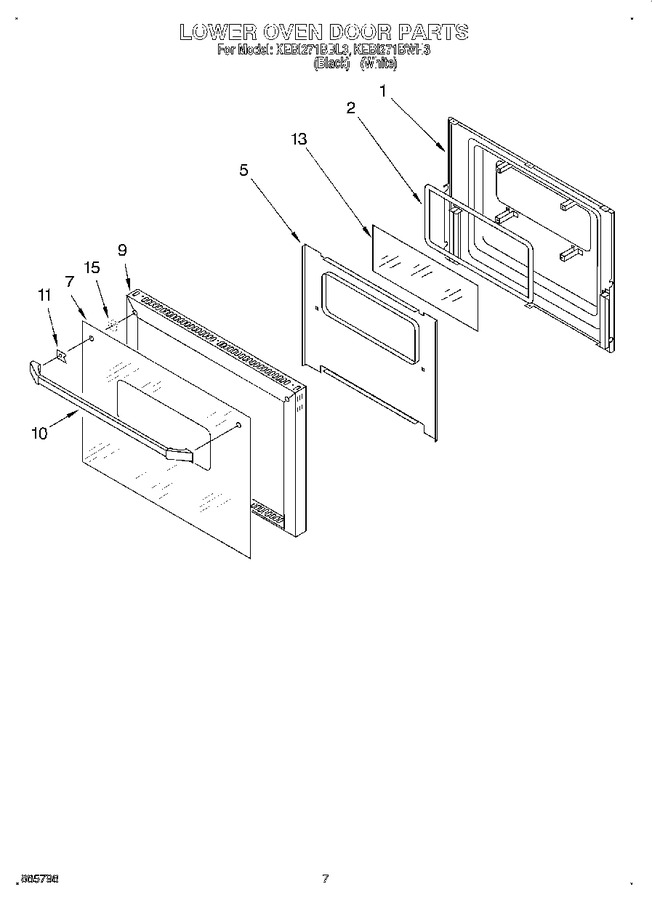

04 - Upper Oven Door


05 - Lower Oven Door


06 - Latch And Vent


07 - Oven Liner


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178001		Screw, Black (2)		Appelez-nous	-
1	3185498		Liner, Door		Appelez-nous	-
2	3185462		Gasket, Window		Appelez-nous	-
5	3188815		Retainer, Insulation		Appelez-nous	-
5	4168863		Screw		Appelez-nous	-
7	3187863		Glass, Door (black Model)		Appelez-nous	-
7	3187865		Glass, Door (white Model)		Appelez-nous	-
9	3187852		Frame, Door (white Model)		Appelez-nous	-
9	3187850		Frame, Door (black Model)		Appelez-nous	-
10	3185987		Handle, Door (white Model)		Appelez-nous	-
10	3185986		Handle, Door (black Model)		Appelez-nous	-
10	4173601		Handle, Door (screw (2))		Appelez-nous	-
11	3182138		Spacer, Handle		Appelez-nous	-
13	3185457		Glass, Clear		Appelez-nous	-
15	3188599		Bushing, Handle		Appelez-nous	-
