SELECT A DIAGRAM
New Model Search:

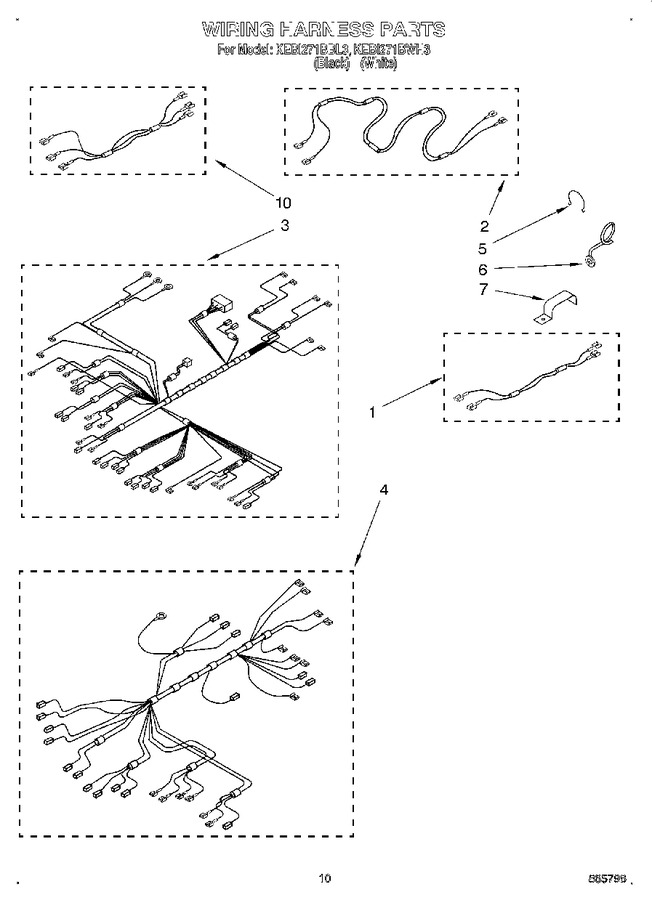

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3187607 | Harness Wire (door Switch Upper) |
|
- | |||||
| 2 | 3183656 | Harness Wire (door Switch Lower) |
|
- | |||||
| 3 | 3186939 | Harness Wire (lower Oven) |
|
- | |||||
| 4 | 3185966 | Harness Wire (upper Oven) |
|
- | |||||
| 5 | 16515 | Clip (Replaces: 313438) |
|
$ 17.60 | |||||
| 5 | WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | |||||
| 6 | 3179668 | Standoff, Wire |
|
- | |||||
| 6 | 3185647 | Screw (4) |
|
- | |||||
| 7 | 7111P002-60 | Clamp, Wire (Replaces: 4159037) |
|
- | |||||
| 10 | 3185952 | Harness, Wire (latch Assy.) |
|
- |
