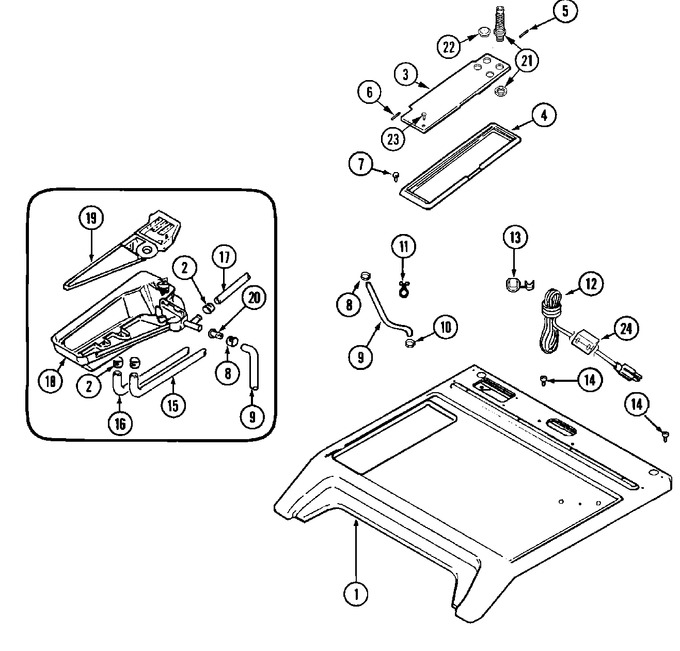

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003586		Cover, Top (wht-as Pk)	67	Appelez-nous	-
001	NLA		Cover, Top (wht)	10	Appelez-nous	-
002	WP489503		Clamp, Hose   (Replaces: 205161)	10		Immediately	$ 9.68
003	22002909		Lid, Dispenser (opl)	10	Appelez-nous	-
004	WP22003665		Bezel, Dispenser   (Replaces: 22002940)	10			$ 70.45
005	WP6-912678		Pin, Hinge (long)   (Replaces: Y912678)	10			$ 6.82
006	Y912679		Pin, Hinge (short)	10			$ 3.98
007	W11772394		Screw, Dispenser Bezel   (Replaces: 22002060)	10		Immediately	$ 10.94
008	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
009	22002556		Hose, Shower	10	Appelez-nous	-
009	33002193		Hose, Shower	51			$ 25.73
010	WP285655		Clamp,hose (tub Outlet)   (Replaces: 201011)	10		Immediately	$ 7.55
011	WP90767		Screw, Wire Tie   (Replaces: 212276)	10		Immediately	$ 7.04
011	WP74007164		Wire Tie, Twist Lock   (Replaces: 22002027)	10			$ 6.85
012	22003045		Cord, Power	10	Appelez-nous	-
013	22003223		Grommet, Cord	10	Appelez-nous	-
014	WP489128		Screw, Power Cord & Ground   (Replaces: 912365)	10			$ 9.79
015	22002551		Hose, Bleach	10	Appelez-nous	-
016	22002552		Hose, Fabric Softener----na	10	Appelez-nous	-
017	22002553		Hose, Detergent	10	Appelez-nous	-
018	12001558		Dispenser Bottom With 4 Clamps	10			$ 50.34
019	22002555		Flume, Dispenser	10	Appelez-nous	-
020	22001900		Preventer, Back Flow	10			$ 13.67
020	W10124350		Not Required Part Or See Note	51	Appelez-nous	-
021	22002908		Tube Fitting, Flexible	10	Appelez-nous	-
022	22003057		Plug, Hole	10	Appelez-nous	-
023	WP3400806		Screw, Dispenser Lid   (Replaces: 22002910)	10			$ 6.94
024	33002501		Filter, Emi	10	Appelez-nous	-
