SELECT A DIAGRAM

01 - Control Panel


02 - Control Center (pd)


03 - Top


04 - Door & Front Panel


05 - Cabinet-front


06 - Cabinet-rear


07 - Outer Tub


08 - Spinner Assembly & Outer Tub Cover


09 - Base

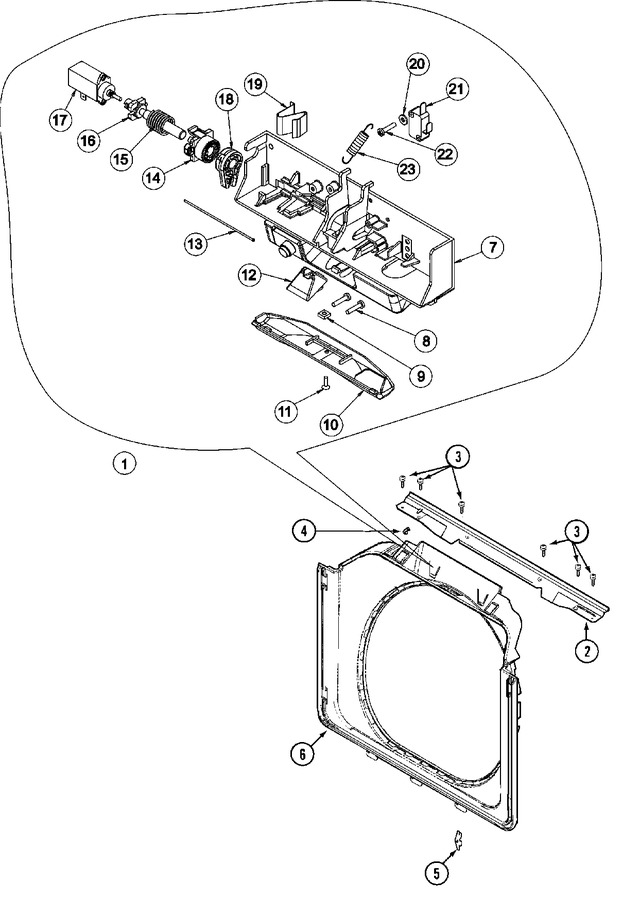

10 - Door Shroud & Door Latch Assembly


11 - Motor & Motor Control


12 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Latch, Assy. (dom/commercial)	10	Appelez-nous	-
002	22002015		Support, Door Lock	10	Appelez-nous	-
002	22003637		Brace Assembly, Top Cross	69	Appelez-nous	-
003	W11573574		Screw, Door Lock Support   (Replaces: 22001995)	10		Immediately	$ 12.62
004	WP308605		Clip, Wire Harness   (Replaces: 22002014)	10			$ 10.08
005	22002095		Cover, Hinge (wht)	10	Appelez-nous	-
005	33001764		Cover, Hinge Hole (wht)	75			$ 36.41
005	WP33001787		Screw   (Replaces: 33001846)	75			$ 10.45
006	22002234		Shroud, Plastic (wht)	10	Appelez-nous	-
007	22003722		Switch Holder Assy, Latch	10			$ 67.14
008	22003719		Screw, Latch	10	Appelez-nous	-
009	22003720		Nut, Latch	10	Appelez-nous	-
010	22002957		Cover, Latch Assembly (lwr)	10	Appelez-nous	-
011	WP241877		Screw   (Replaces: 22002435)	10			$ 3.56
012	22003055		Ramp, Door Hoop	10			$ 27.77
013	22002164		Cable, Door	10	Appelez-nous	-
014	22003715		Sliding Gear, Latch	10			$ 5.84
015	22003721		Spring, Axle / Latch	10			$ 6.56
016	22003718		Axle, Latch	10			$ 5.84
017	12002535		Motor, Wax   (Replaces: 22002119)	10		Immediately	$ 20.30
018	22003716		Rotating Gear, Latch	10			$ 5.51
019	22003717		Spring, Latch	10			$ 0.80
020	22001352		Screw, Check Switch	10	Appelez-nous	-
021	22002165		Washer, Door Lock Switch	10	Appelez-nous	-
022	WP22002162		Switch, Door Lock Spin Enable   (Replaces: 22002162)	10		Immediately	$ 51.28
023	22002158		Spring, Gear Return	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
