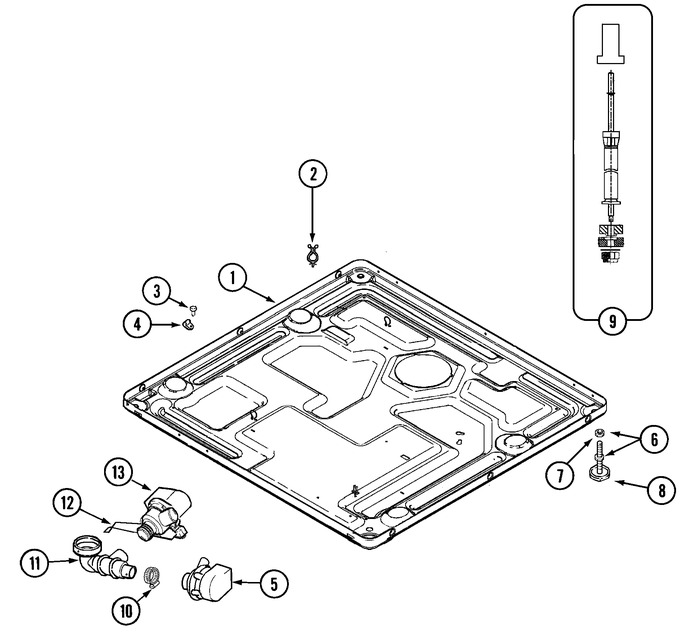

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003435		Base   (Replaces: 22002240)	10			$ 309.12
001	22003580		Base, Assembly	67	Appelez-nous	-
001	22003605		Base Weld Assembly	72	Appelez-nous	-
002	315471		Retainer, Wire	10	Appelez-nous	-
003	WP90767		Screw, Wire Harness Clip   (Replaces: 212276)	10		Immediately	$ 7.04
004	WP308605		Clip, Wire Harness   (Replaces: 22002014)	10			$ 10.08
005	WP22003059		Pump, Drain (80 Watt)   (Replaces: 22002939)	10		Immediately	$ 175.14
005	WP22003059		Pump, Drain (80 Watt)   (Replaces: 22003059)	49		Immediately	$ 175.14
006	WP8563585		Adjustable Leg & Nut   (Replaces: 22001915)	10		Immediately	$ 13.28
007	WP62739		Nut   (Replaces: Y052740)	10			$ 6.85
008	WP210684		Foot, Rubber   (Replaces: 210684)	10		Immediately	$ 14.09
009	22001988		Strut Assy-rear	10			$ 200.90
010	WP596669		Hose Clamp - 1-1/16 Inch   (Replaces: 202515)	10		Immediately	$ 7.56
011	22002793		Hose, Outlet W/filter (6 1/2``)	10	Appelez-nous	-
011	22002958		Hose, Outlet (tub)	42	Appelez-nous	-
012	22002790		Bracket, Pump Mount	10	Appelez-nous	-
013	WP596669		Clamp, Hose (pump/hose)   (Replaces: 202515)	10		Immediately	$ 7.56
013	22002792		Pump (recirculation)	10			$ 155.53
013	22003284		Pad, Recirculation Pump	10	Appelez-nous	-
