SELECT A DIAGRAM

01 - Control Panel (pd/ps)


02 - Control Center (pd)


03 - Top


04 - Cabinet-front


05 - Cabinet-rear


06 - Outer Tub


07 - Spinner Assembly & Outer Tub Cover


08 - Base


09 - Door & Front Panel


10 - Door Shroud & Door Latch Assembly


11 - Wiring Information


12 - Motor & Motor Control

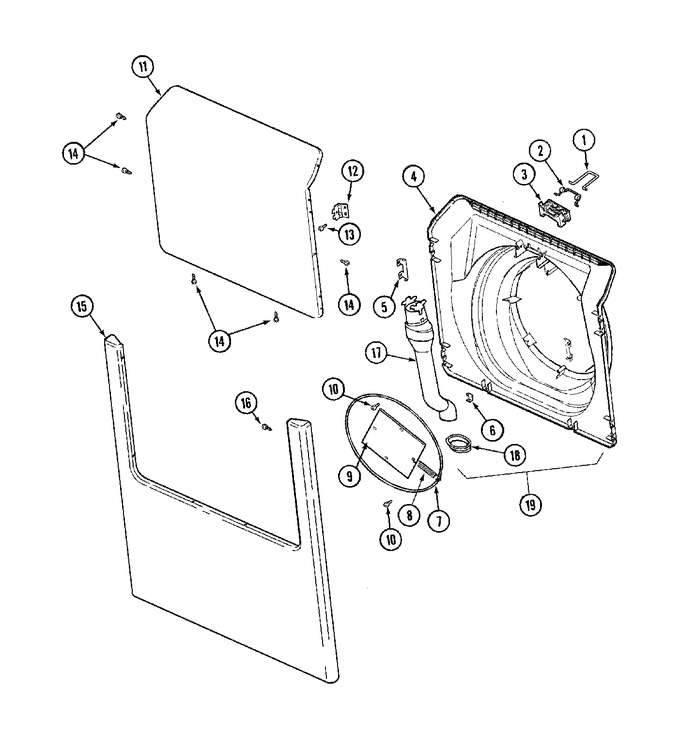

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22002002		Hoop, Lock	10	Appelez-nous	-
002	22002003		Spring, Latch	10			$ 5.70
003	22002168		Support, Lock Hoop	10			$ 6.85
004	22002539		Door, Inner (w/vent-wht)	10	Appelez-nous	-
004	22002615		Door, Inner (w/vent-bsq)	10	Appelez-nous	-
004	22003076		Door, Inner (wht)	50	Appelez-nous	-
004	22003078		Door, Inner (bsq)	50	Appelez-nous	-
004	22003800		Inner Door/vented (aspk-wht)	76			$ 156.60
005	22002038		Clip, Door (double)	10	Appelez-nous	-
006	22002039		Clip, Door (single)	10			$ 8.15
007	22002104		Wireframe	10	Appelez-nous	-
007	W10124350		Not Required Part Or See Note	65	Appelez-nous	-
008	22002356		Spring, Plate	10	Appelez-nous	-
008	W10124350		Not Required Part Or See Note	65	Appelez-nous	-
009	22002094		Plate	10	Appelez-nous	-
009	W10124350		Not Required Part Or See Note	65	Appelez-nous	-
010	22002007		Screw	10	Appelez-nous	-
010	W10124350		Not Required Part Or See Note	65	Appelez-nous	-
011	22001979		Door, Outer (wht-w/damper)	10	Appelez-nous	-
011	22002660		(bsq-w/damper)	10	Appelez-nous	-
012	WP22002798		Hinge, Door----sub   (Replaces: 22002000)	10			$ 77.72
013	WP98006631		Screw, Hinge   (Replaces: 22002062)	10			$ 6.26
014	22002063		Screw No.8-18ab Wafer Hd	10			$ 5.48
014	33002351		Screw, Outer Door (bsq)	10	Appelez-nous	-
015	22002049		Clip	10			$ 8.40
015	22002663		Panel, Front (bsq)	10	Appelez-nous	-
015	22002836		Panel, Front (wht)	10			$ 448.33
016	22002243		Screw, Front Panel & Hinge	10	Appelez-nous	-
016	22002244		Clip, Grounding	10	Appelez-nous	-
017	22002990		Vent Tube Assembly	50	Appelez-nous	-
018	WP22003075		Grommet, Vent Tube   (Replaces: 22003075)	50			$ 50.41
019	22003083		Liner, Door Assy W/vent (wht)	50			$ 291.08
019	22003085		Liner, Door Assy W/vent (bsq)	50	Appelez-nous	-
