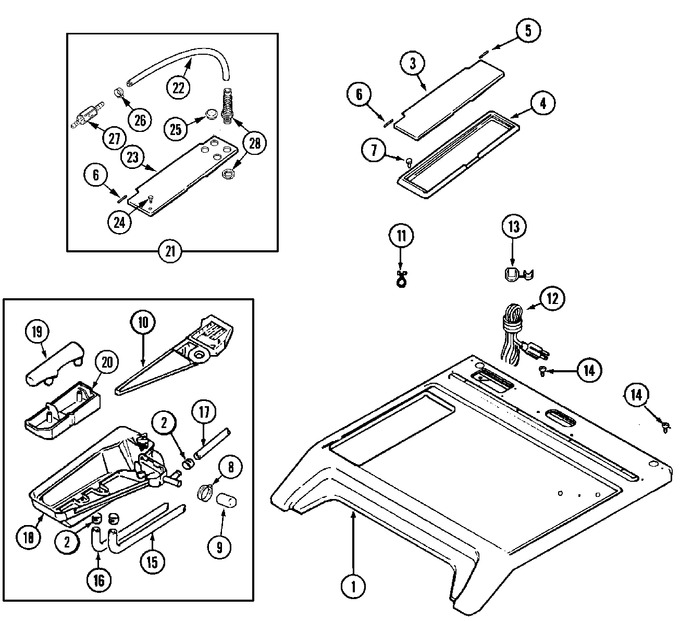

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22002116 | Cover, Top (wht) | 47 |
|
- | ||||
| 001 | 22003584 | Cover, Top (wht-as Pk) | 67 |
|
- | ||||
| 002 | WP489503 | Clamp, Hose (Replaces: 205161) | 47 |
|
Immediately | $ 9.68 | |||
| 003 | WP22002941 | Lid, Dispenser (Replaces: 22002941) | 47 |
|
$ 47.25 | ||||
| 004 | WP22003665 | Bezel, Dispenser (Replaces: 22002940) | 47 |
|
$ 70.45 | ||||
| 005 | WP6-912678 | Pin, Hinge (long) (Replaces: Y912678) | 47 |
|
$ 6.82 | ||||
| 006 | Y912679 | Pin, Hinge (short) | 47 |
|
$ 3.98 | ||||
| 007 | W11772394 | Screw, Dispenser Bezel (Replaces: 22002060) | 47 |
|
Immediately | $ 10.94 | |||
| 008 | WP285655 | Clamp, Drain Hose (Replaces: 22001984) | 47 |
|
Immediately | $ 7.55 | |||
| 009 | 22002796 | Cap | 47 |
|
- | ||||
| 010 | 22002555 | Flume, Dispenser | 47 |
|
- | ||||
| 011 | WP90767 | Screw, Wire Tie (Replaces: 212276) | 47 |
|
Immediately | $ 7.04 | |||
| 011 | WP74007164 | Wire Tie, Twist Lock (Replaces: 22002027) | 47 |
|
$ 6.85 | ||||
| 012 | 22001178 | Cord, Power | 47 |
|
- | ||||
| 013 | 211881 | Grommet, Cord | 47 |
|
- | ||||
| 014 | WP489128 | Screw, Power Cord & Ground (Replaces: 912365) | 47 |
|
$ 9.79 | ||||
| 015 | 22002551 | Hose, Bleach | 47 |
|
- | ||||
| 016 | 22002552 | Hose, Fabric Softener----na | 47 |
|
- | ||||
| 017 | 22002553 | Hose, Detergent | 47 |
|
- | ||||
| 018 | 22002768 | Dispenser Bottom | 47 |
|
- | ||||
| 019 | 22002266 | Cap, Siphon | 47 |
|
$ 37.23 | ||||
| 020 | 22002265 | Cup, Siphon | 47 |
|
$ 25.22 | ||||
| 021 | 12001671 | Chemical Inject.dispenser Assy | 47 |
|
- | ||||
| 022 | 22003017 | Tubing (12``) | 47 |
|
- | ||||
| 023 | 22002909 | Lid, Dispenser (opl) | 47 |
|
- | ||||
| 024 | WP3400806 | Screw, Lid (Replaces: 22002910) | 47 |
|
$ 6.94 | ||||
| 025 | 22002911 | Plug, Hole (dispen Lid) | 47 |
|
- | ||||
| 026 | WP596669 | Clamp, Stainless Steel (Replaces: 22003018) | 47 |
|
Immediately | $ 7.56 | |||
| 027 | 22003019 | Valve, Check | 47 |
|
- | ||||
| 028 | 22002908 | Tube Fitting, Flexible | 47 |
|
- | ||||
| 028 | 33001989 | Retainer, Wire | 47 |
|
- |
