SELECT A DIAGRAM

Diagram for 01 - Door & Front Panel
01 - Door & Front Panel

Diagram for 02 - Door Shroud & Door Latch Assembly
02 - Door Shroud & Door Latch Assembly

Diagram for 03 - Cabinet-front
03 - Cabinet-front

Diagram for 04 - Cabinet-rear
04 - Cabinet-rear

Diagram for 05 - Outer Tub
05 - Outer Tub

Diagram for 06 - Spinner Assembly & Outer Tub Cover
06 - Spinner Assembly & Outer Tub Cover

Diagram for 07 - Base
07 - Base

Diagram for 08 - Top (mah20pnaww)
08 - Top (mah20pnaww)

Diagram for 09 - Control Panel (mah20pnaww)
09 - Control Panel (mah20pnaww)

Diagram for 10 - Wiring Information
10 - Wiring Information

Diagram for 11 - Motor & Motor Control
11 - Motor & Motor Control


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 NLA Wiring Information 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

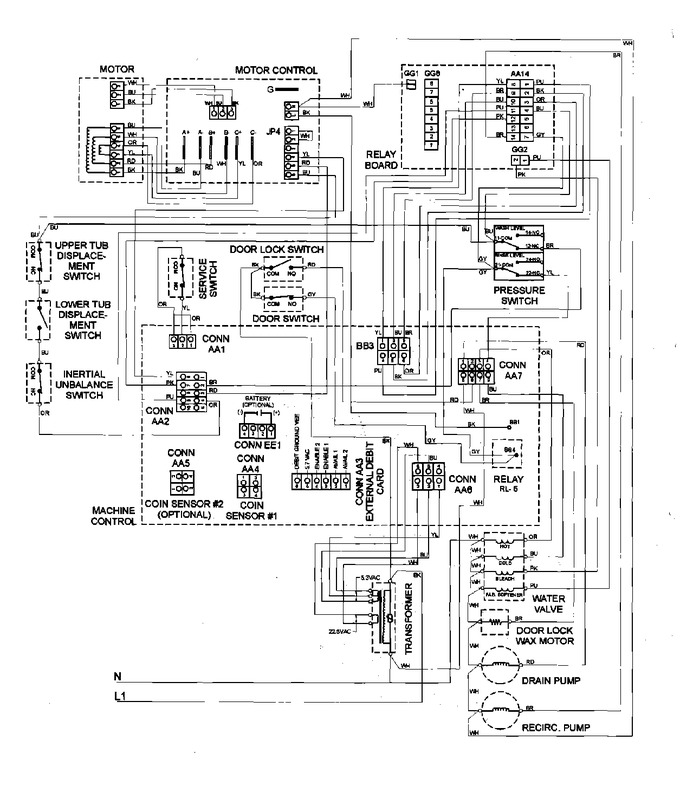

Diagram for MAH20PNAWW
