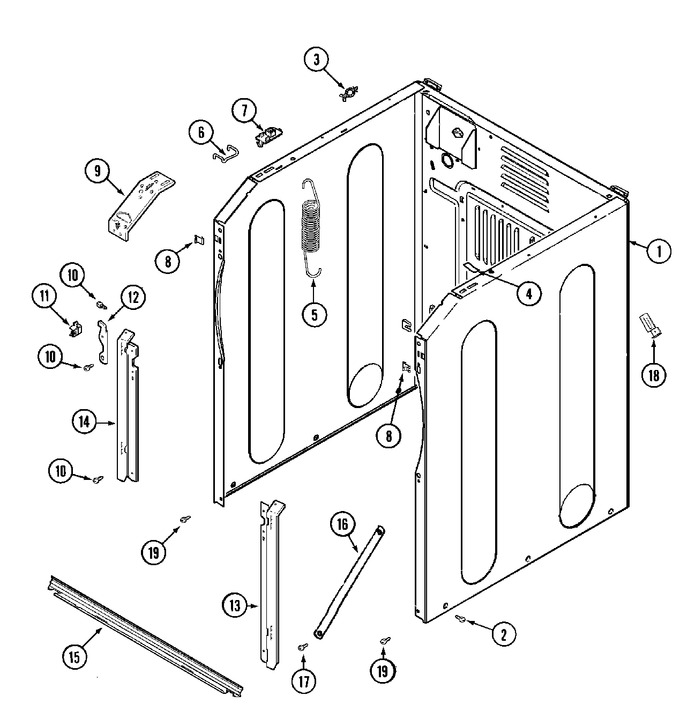

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22002293		Insulation, Cabinet (one On Each Side)	10	Appelez-nous	-
001	22003639		Cabinet Assy. (wht As Pk)	72	Appelez-nous	-
001	NLA		Cabinet Assy. (wht)	10	Appelez-nous	-
002	213007		Screw, Cabinet	10			$ 10.99
002	213007		Screw, Cabinet (truss)   (Replaces: 22003409)	67			$ 10.99
003	315471		Retainer, Wire	10	Appelez-nous	-
004	33001836		Strap, Top Cover Support	10	Appelez-nous	-
005	22002100		Spring	10			$ 22.82
006	22002297		Support, Spring	10			$ 5.84
007	22001997		Spacer, Top Cover	10	Appelez-nous	-
008	22002049		Clip, Front Panel	10			$ 8.40
009	22002090		Brace, Corner (rt)	10	Appelez-nous	-
009	22002292		Brace, Corner (lt)	10	Appelez-nous	-
009	22003637		Brace Assembly, Top Cross	69	Appelez-nous	-
010	W11573574		Screw, Clip To Security Hook   (Replaces: 22001995)	10		Immediately	$ 12.62
011	22002001		Support, Hinge	10	Appelez-nous	-
012	22002247		Hook, Security	10	Appelez-nous	-
013	22002034		Bracket, Shroud Support (rt)	10	Appelez-nous	-
014	22002035		Bracket, Shroud Support (lt)	10	Appelez-nous	-
015	22001993		Bridge, Shroud Support	10	Appelez-nous	-
016	22002259		Brace, Cross	10	Appelez-nous	-
016	22003637		Brace Assembly, Top Cross	69	Appelez-nous	-
017	W11573574		Screw, Cross Brace   (Replaces: 22001995)	10		Immediately	$ 12.62
018	WP489128		Screw, Air Dome Hose Bracket   (Replaces: 22001996)	10			$ 9.79
018	22002178		Bracket, Air Dome Hose	10	Appelez-nous	-
019	W11573574		Screw, Front Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
