SELECT A DIAGRAM

01 - Top


02 - Cabinet-front


03 - Cabinet-rear


04 - Outer Tub


05 - Spinner Assembly & Outer Tub Cover


06 - Base


07 - Door & Front Panel


08 - Door Shroud & Door Latch Assembly

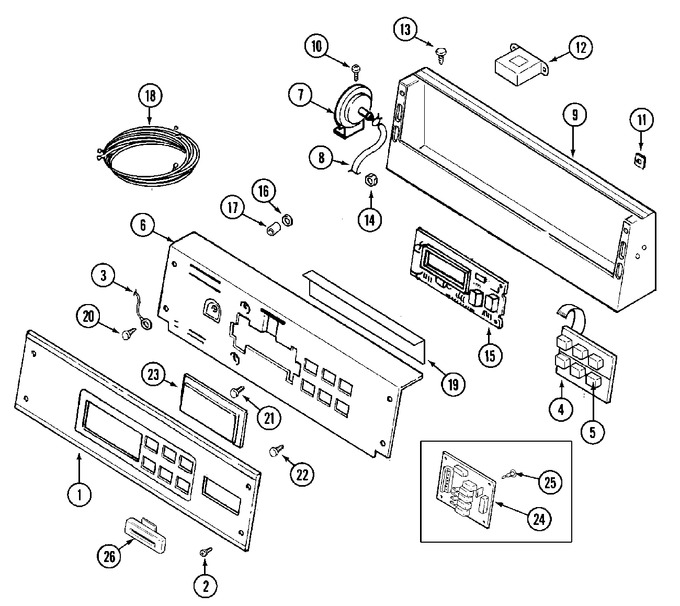

09 - Control Panel (mah20praww)


10 - Wiring Information


11 - Motor & Motor Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22002352		Panel, Control	10	Appelez-nous	-
002	WPW10131119		Screw, Control Panel   (Replaces: 215506)	10			$ 6.26
003	205810		Wire, Ground	10	Appelez-nous	-
004	WPW10135389		Control Switch Assembly   (Replaces: 206808)	10			$ 125.66
004	W10756178		Screw, Control Switch   (Replaces: 215527)	10			$ 5.39
005	WPW10424308		Pushbutton, Control Switch   (Replaces: 215517)	10		Immediately	$ 18.38
006	22002347		Switch Brkt & Back Brkt (wht)	10	Appelez-nous	-
006	22003090		Switch & Back Brkt Asy. (wht)	48	Appelez-nous	-
007	WP22002921		Switch, Pressure   (Replaces: 22002048)	10			$ 166.10
007	22002994		Switch, Pressure	44	Appelez-nous	-
008	22002010		Hose, Pressure Switch	10			$ 34.16
009	22003101		Console (wht)	48	Appelez-nous	-
009	33001957		Console (wht)	10	Appelez-nous	-
010	WP489128		Screw, Console   (Replaces: 22001996)	10			$ 9.79
011	215003		Fastener, Screw	10	Appelez-nous	-
012	WPW10131839		Transformer   (Replaces: 22001960)	10		Immediately	$ 120.20
013	211251		Screw, Transformer	10	Appelez-nous	-
014	22001419		Nut, Transformer	10	Appelez-nous	-
015	22004335		Board, Control   (Replaces: 22002953)	10	Appelez-nous	-
016	M0282005		Locknut, Control Board   (Replaces: 912077)	10			$ 7.07
017	33001204		Standoff, Circuit Board	10	Appelez-nous	-
018	22001973		Harness, Pr Service	10	Appelez-nous	-
018	22002155		Harness Kit, Reader (12``)	10	Appelez-nous	-
018	22002945		Harness, Wire	10	Appelez-nous	-
019	22002954		Deflector, Water (w/adhesive)	10	Appelez-nous	-
020	WP489399		Screw, Ground Wire   (Replaces: 211252)	10			$ 6.26
021	215526		Screw, Circuit Board	10	Appelez-nous	-
022	W10756178		Screw, Back Bracket   (Replaces: 215527)	10			$ 5.39
023	WPW10131114		Cover, Display   (Replaces: 22001962)	10			$ 42.79
024	22002942		Board, Relay (drs)	10	Appelez-nous	-
025	22002943		Stand-off	10	Appelez-nous	-
026	WPW10131115		Bezel   (Replaces: 22001976)	10			$ 7.63
