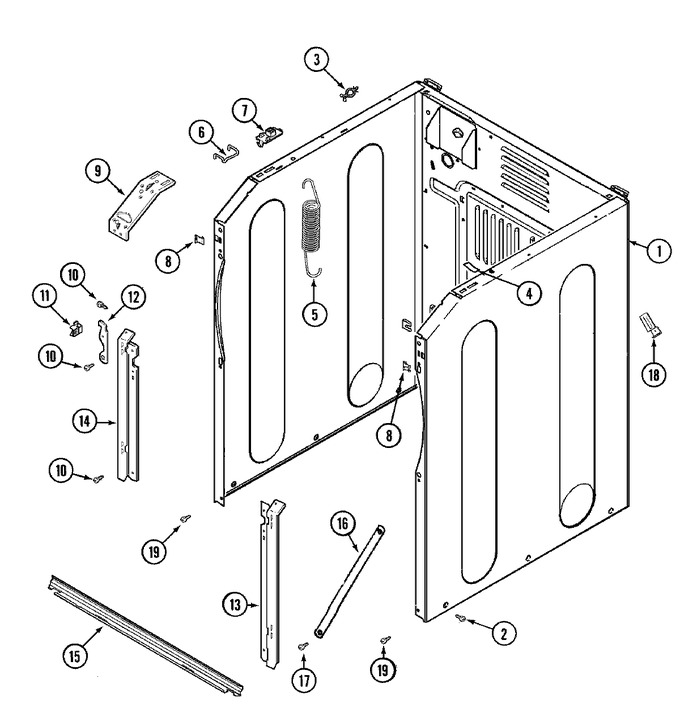

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22002293		Insulation, Cabinet	10	Appelez-nous	-
1	12001425		Cabinet Kit (alm)	10	Appelez-nous	-
1	22002549		Cabinet Assy. (alm)	30	Appelez-nous	-
2	22002013		Stop, Shipping	10			$ 5.43
2	33001827		Bracket, Cabinet Hinge	10	Appelez-nous	-
3	315471		Retainer, Wire	10	Appelez-nous	-
4	33001836		Strap, Top Cover Support	10	Appelez-nous	-
5	22002100		Spring	10			$ 22.82
6	22002297		Support, Spring	10			$ 5.84
7	22001997		Spacer, Top Cover	10	Appelez-nous	-
8	22002049		Clip	10			$ 8.40
9	22002292		Brace, Corner (lt)	10	Appelez-nous	-
9	22002090		Brace, Corner	10	Appelez-nous	-
10	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
11	22002001		Support, Hinge	10	Appelez-nous	-
12	22002247		Hook, Security	10	Appelez-nous	-
13	22002034		Bracket, Shroud Support (rt)	10	Appelez-nous	-
14	22002035		Bracket, Shroud Support (lt)	10	Appelez-nous	-
15	22001993		Bridge, Shroud Support	10	Appelez-nous	-
16	22002259		Brace, Cross	10	Appelez-nous	-
17	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
18	WP489128		Screw   (Replaces: 22001996)	10			$ 9.79
18	22002178		Bracket, Water Switch	10	Appelez-nous	-
19	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
20	213007		Screw, Cabinet	10			$ 10.99
