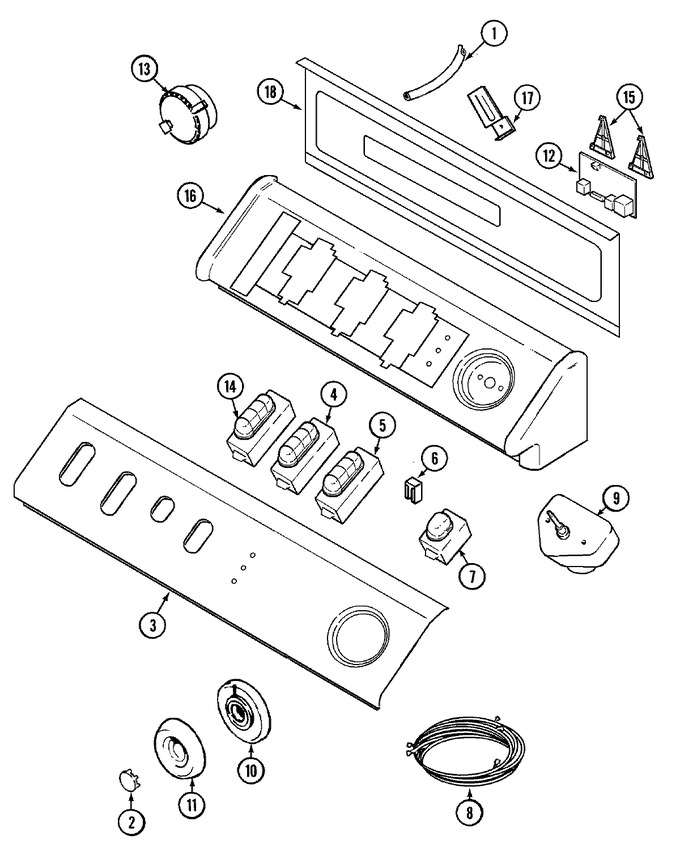

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22002010 | Hose, Air Dome | 10 |
|
$ 34.16 | ||||
| 2 | 22001665 | Insert, Timer Knob (alm) | 10 |
|
- | ||||
| 3 | 22002276 | Panel, Control (alm) | 10 |
|
- | ||||
| 4 | 22001790 | Button (alm-end) | 10 |
|
- | ||||
| 4 | 22001791 | Button (alm-mdl) | 10 |
|
- | ||||
| 4 | 22002269 | Switch, Temperature (alm) | 10 |
|
- | ||||
| 5 | 22002272 | Switch, Options (alm) | 10 |
|
- | ||||
| 5 | 22001791 | Button (alm-mdl) | 10 |
|
- | ||||
| 5 | 22001790 | Button (alm-end) | 10 |
|
- | ||||
| 6 | 22002281 | Indicator Light (on Light) | 17 |
|
$ 32.49 | ||||
| 6 | 903115 | Lock Light | 10 |
|
$ 5.70 | ||||
| 6 | 903115 | Lock Light | 17 |
|
$ 5.70 | ||||
| 7 | 22002274 | Switch, Push To Start (alm) | 10 |
|
- | ||||
| 8 | 22002405 | Wire Harness, Main | 19 |
|
- | ||||
| 8 | 22002472 | Wire Harness, Main | 25 |
|
- | ||||
| 8 | 22002335 | Wire Harness, Main | 17 |
|
- | ||||
| 8 | 22002693 | Wire Harness, Main | 30 |
|
- | ||||
| 8 | 22002280 | Wire Harness, Main | 10 |
|
- | ||||
| 9 | 22002277 | Timer | 10 |
|
- | ||||
| 9 | 22001662 | Screw | 10 |
|
- | ||||
| 9 | 22002441 | Timer | 19 |
|
$ 196.18 | ||||
| 9 | 22002338 | Timer | 17 |
|
- | ||||
| 10 | 22002283 | Bezel, Timer Dial (alm) | 10 |
|
- | ||||
| 11 | WP22001659 | Timer Knob - Grey (Replaces: 22001659) | 10 |
|
$ 26.38 | ||||
| 12 | M0282005 | Locknut (Replaces: 912077) | 10 |
|
$ 7.07 | ||||
| 12 | 22002334 | Board, Control | 17 |
|
- | ||||
| 12 | 22002287 | Screw, Machine Control | 10 |
|
- | ||||
| 12 | 22002279 | Board, Machine Control | 10 |
|
- | ||||
| 13 | WP22002921 | Switch, Pressure (Replaces: 22002048) | 10 |
|
$ 166.10 | ||||
| 14 | 22002271 | Switch, Fabric (alm) | 10 |
|
- | ||||
| 14 | 22001790 | Button (alm-end) | 10 |
|
- | ||||
| 14 | 22001791 | Button (alm-mdl) | 10 |
|
- | ||||
| 15 | 22002284 | Bracket | 10 |
|
- | ||||
| 16 | WP22001948 | Lens, Indicator Light (Replaces: 22001948) | 10 |
|
$ 11.42 | ||||
| 16 | 22002286 | Console (alm) | 10 |
|
- | ||||
| 17 | 22002178 | Bracket, Water Switch | 10 |
|
- | ||||
| 17 | 22002345 | Tie, Wire | 10 |
|
- | ||||
| 17 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 18 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 18 | 33001806 | Back, Console Panel | 10 |
|
- | ||||
| 18 | Y22002339 | Screw | 10 |
|
- | ||||
| 19 | 22002298 | Manual, Use & Care | 10 |
|
- | ||||
| 19 | 22002299 | Manual, Use & Care (french) | 10 |
|
- | ||||
| 20 | 22002303 | Video, U & C (burgundy) | 10 |
|
- |
