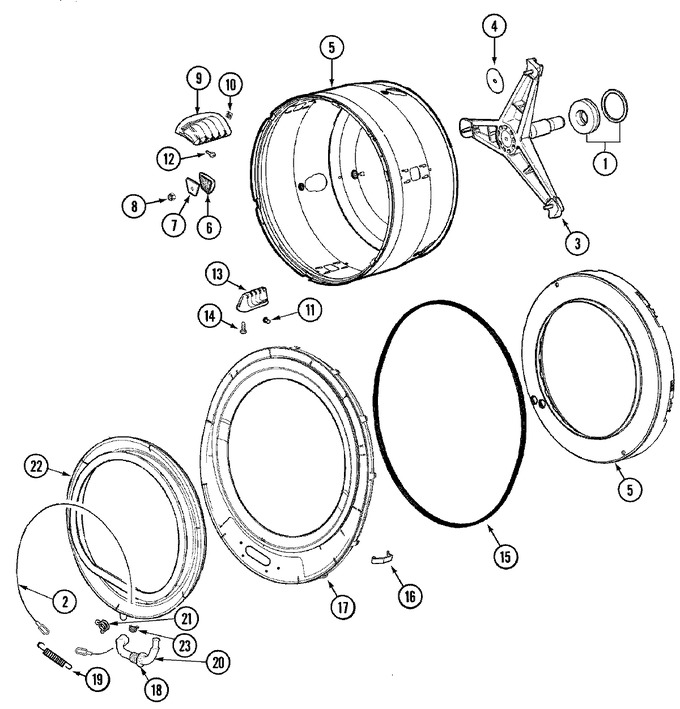

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12002022		Lip Seal Kit	22		Immediately	$ 102.95
1	12002022		Lip Seal Svc Assy.   (Replaces: 12001478)	10		Immediately	$ 102.95
2	22002105		Wire, Boot Clamp	10	Appelez-nous	-
3	22002897		Support Assy., Spinner	10	Appelez-nous	-
3	WP22004108		O Ring   (Replaces: 22004108)	22			$ 19.05
3	22004081		Spinner Support Assy As-pk Kit	22	Appelez-nous	-
3	22002123		Tube, Molykote	10			$ 21.11
4	22002023		Washer, Plastic	10			$ 8.21
5	22004080		Outer Tub Assembly As-pk Kit	22	Appelez-nous	-
5	22003413		Outer Tub Assy.(nc As Packed)	10	Appelez-nous	-
6	22002021		Washer, Profile	10	Appelez-nous	-
7	22002020		Washer, Spinner Support	10			$ 28.18
8	WP2207454		Nut, Spinner Attachment   (Replaces: 22002122)	10			$ 9.58
9	22001985		Baffle, Drip (rear)	10			$ 61.16
10	22002009		Grommet, Baffle (rear)	10			$ 20.18
11	22001999		Grommet, Baffle (frt)	10			$ 22.80
12	22002325		Screw	10	Appelez-nous	-
13	22001986		Baffle, Drip (front)	10			$ 53.83
14	22002059		Screw	10			$ 5.33
15	22002077		Seal, Tub Cover	10			$ 32.50
16	22002050		Clip, Tub To Cover	10			$ 8.16
17	22004264		Assy., Tub Cover & Seal	27	Appelez-nous	-
17	22003212		Cover, Tub (w/seal) (asp)	10			$ 92.51
18	WP22003074		Guard, Hose   (Replaces: 22003074)	10			$ 6.95
19	22002099		Spring, Tub	10			$ 20.13
20	WP22004477		Door Boot Drain Hose   (Replaces: 22003071)	10			$ 66.20
21	WP596669		Clamp, Hose Double Wire   (Replaces: 22003072)	10		Immediately	$ 7.56
22	22003070		Door Boot W/drain (gray)	10	Appelez-nous	-
23	WP596669		Clamp, Hose Double Wire   (Replaces: 22003073)	10		Immediately	$ 7.56
