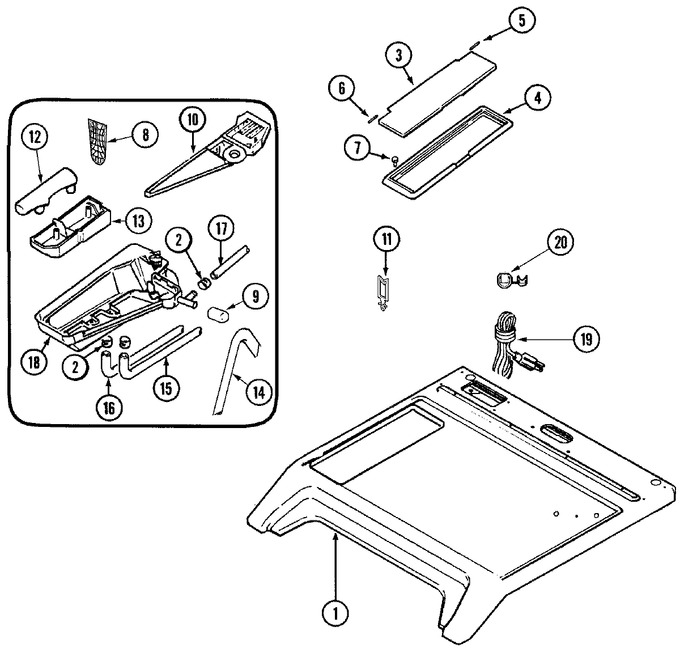

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22002116		Cover, Top (wht)	10	Appelez-nous	-
2	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
3	22002288		Lid, Dispenser (wht)	10	Appelez-nous	-
4	22002290		Bezel, Dispenser (wht)	10			$ 30.56
5	WP6-912678		Pin, Hinge (long)   (Replaces: Y912678)	10			$ 6.82
6	Y912679		Pin, Hinge (short)	10			$ 3.98
7	W11772394		Screw   (Replaces: 22003263)	10		Immediately	$ 10.94
8	22003321		Grid, Dispenser	10	Appelez-nous	-
9	22002796		Cap	10	Appelez-nous	-
10	22003322		Top, Dispenser (flume)	10	Appelez-nous	-
11	WP74007164		Wire Tie, Twist Lock   (Replaces: 22002027)	10			$ 6.85
12	22002266		Cap, Siphon	10			$ 37.23
13	22002265		Cup, Siphon	10			$ 25.22
14	22003259		Hose, Shower (9 1/2``)	10	Appelez-nous	-
15	22002551		Hose, Bleach	10	Appelez-nous	-
16	22002552		Hose, Fabric Softener----na	10	Appelez-nous	-
17	22003457		Hose, Detergent	10			$ 5.02
18	22003320		Bottom, Dispenser Assy.	10	Appelez-nous	-
19	22001178		Cord, Power	10	Appelez-nous	-
20	WP489128		Screw   (Replaces: 912365)	10			$ 9.79
20	211881		Grommet, Cord	10	Appelez-nous	-
