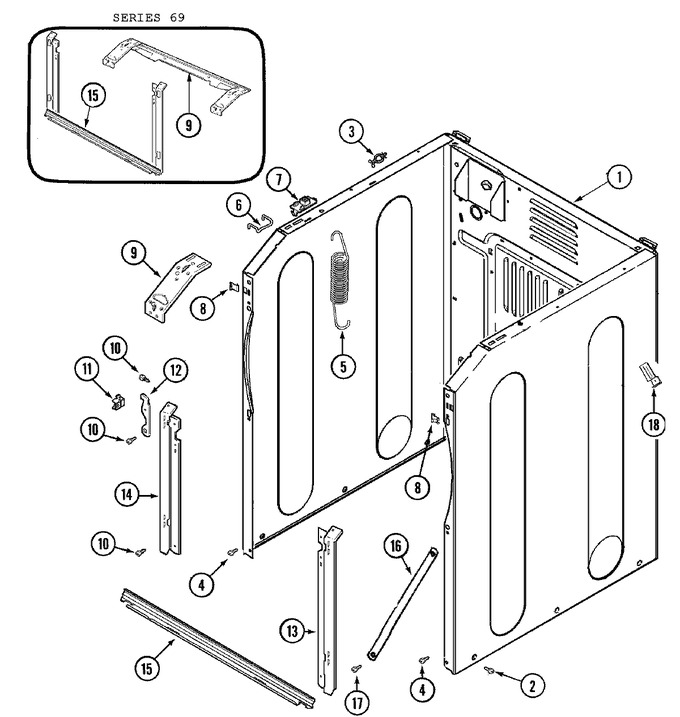

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003367 | Hinge, Plastic | 67 |
|
- | ||||
| 1 | W11573574 | Screw (Replaces: 22001995) | 67 |
|
Immediately | $ 12.62 | |||
| 1 | 22002293 | Insulation, Cabinet | 10 |
|
- | ||||
| 1 | 22002659 | Cabinet Assy. (bsq) | 10 |
|
- | ||||
| 1 | 22003640 | Cabinet Assy. (bisque As Pk) | 72 |
|
- | ||||
| 1 | 22003583 | Cabinet, Assy. (bsq-as Pk) | 67 |
|
- | ||||
| 2 | 22002013 | Stop, Shipping | 10 |
|
$ 5.43 | ||||
| 2 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 2 | W10124350 | Not Required Part Or See Note Stop Not Required | 67 |
|
- | ||||
| 2 | 213007 | Screw----na (Replaces: 22003409) | 67 |
|
$ 10.99 | ||||
| 3 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 4 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | WP22003254 | Spring, Cabinet (Replaces: 22003254) | 10 |
|
$ 7.16 | ||||
| 6 | 22002297 | Support, Spring | 10 |
|
$ 5.84 | ||||
| 7 | 22001997 | Spacer, Top Cover | 10 |
|
- | ||||
| 8 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 9 | 22002292 | Brace, Corner (lt) | 10 |
|
- | ||||
| 9 | 22002090 | Brace, Corner | 10 |
|
- | ||||
| 9 | 22003637 | Brace Assembly, Top Cross | 69 |
|
- | ||||
| 10 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 11 | 22002001 | Support, Hinge | 10 |
|
- | ||||
| 12 | 22002247 | Hook, Security | 10 |
|
- | ||||
| 13 | 22002034 | Bracket, Shroud Support (rt) | 10 |
|
- | ||||
| 14 | 22002985 | Bracket, Shroud (lt) | 10 |
|
- | ||||
| 15 | 22003652 | Shroud Support Assembly | 69 |
|
- | ||||
| 15 | 22001993 | Bridge, Shroud Support | 10 |
|
- | ||||
| 16 | 22002259 | Brace, Cross | 10 |
|
- | ||||
| 17 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 22002178 | Bracket, Water Switch | 10 |
|
- | ||||
| 18 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 9.79 |
