MAH5500BWQ | TransGlobal : Appliance Model Lookup

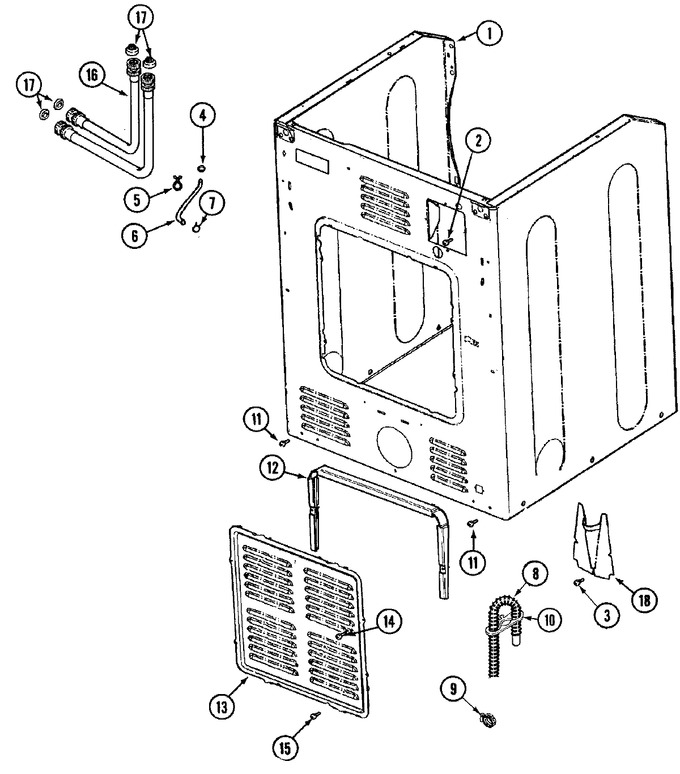

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	22003367	Hinge, Plastic	10	Appelez-nous	-
1	W11573574	Screw (Replaces: 22001995)	10		Immediately	$ 12.62
1	22002445	Label, Safety	10	Appelez-nous	-
1	22002659	Cabinet Assy. (bsq)	10	Appelez-nous	-
1	22003583	Cabinet, Assy. (bsq-as Pk)	67	Appelez-nous	-
1	22003640	Cabinet Assy. (bisque As Pk)	72	Appelez-nous	-
2	W10850756	Screw----na (Replaces: 33001245)	10			$ 6.98
3	W11573574	Screw (Replaces: 22001995)	10		Immediately	$ 12.62
4	WP285655	Clamp, Stepless (Replaces: 22002054)	10		Immediately	$ 7.55
5	WP74007164	Wire Tie, Twist Lock (Replaces: 22002027)	10			$ 6.85
6	35-2890	Cable Tie	10	Appelez-nous	-
6	WP22002083	Hose, Injector (Replaces: 22002083)	10			$ 124.55
7	WP596669	Clamp,hose-injec.hose To Valve (Replaces: 216169)	10		Immediately	$ 7.56
8	22002932	Clip, Drain Hose	10	Appelez-nous	-
8	35-2890	Cable Tie	10	Appelez-nous	-
8	12001807	Kit Nc, Drain Hose Replacement	10			$ 49.51
9	WP285655	Clamp, Drain Hose (Replaces: 22001984)	10		Immediately	$ 7.55
10	WP22002892	Retainer, Drain Hose (Replaces: 22002892)	10			$ 76.85
11	W11573574	Screw (Replaces: 22001995)	10		Immediately	$ 12.62
12	22002022	Spacer, Access Panel	10	Appelez-nous	-
13	22004355	Rear Access Panel	11	Appelez-nous	-
13	22002092	Panel, Access	10	Appelez-nous	-
14	WP489128	Screw (Replaces: 22002925)	11			$ 9.79
14	WP67006908	Screw (Replaces: 22002295)	10		Immediately	$ 7.16
15	WP489128	Screw (Replaces: 22001996)	10			$ 9.79
16	WP89503	Hose, 4` Inlet (Replaces: 33-7891)	10		Immediately	$ 21.68
16	WP89503	Hose, 5` Inlet (Replaces: 33-7046)	10		Immediately	$ 21.68
17	22002229	Strainer	10	Appelez-nous	-
17	Y013783	Gasket, Inlet Hose	10			$ 18.72
18	22002093	Cover, Drain Hose	10	Appelez-nous	-
