SELECT A DIAGRAM
New Model Search:

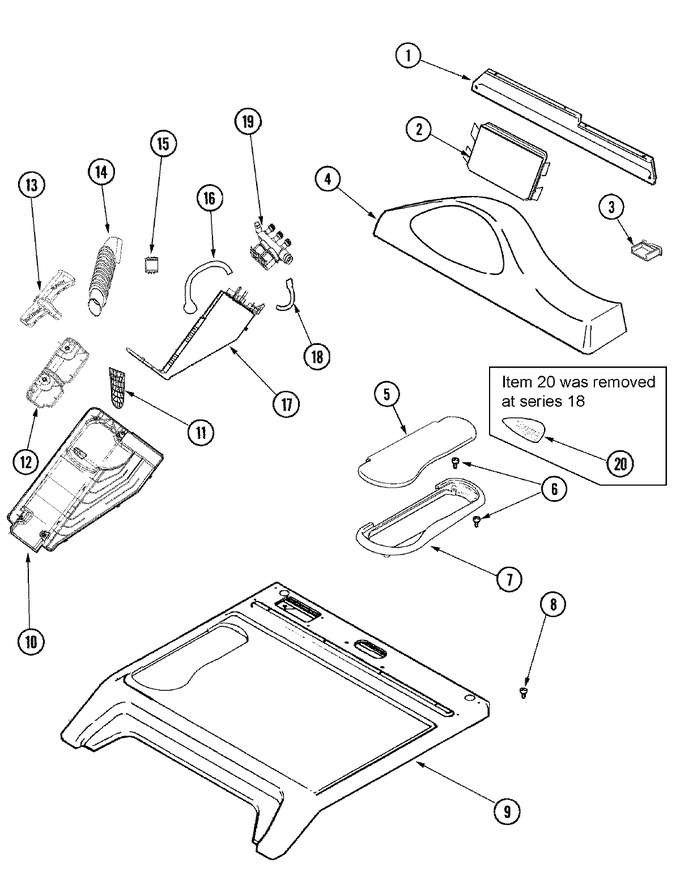

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003581 | Back, Console Panel | 10 |
|
- | ||||
| 2 | 22003880 | Control Board (as Pack) | 10 |
|
- | ||||
| 2 | 22002061 | Screw | 10 |
|
- | ||||
| 2 | 22004316 | Control Board, Led/ncn | 13 |
|
- | ||||
| 2 | 22004446 | Control Board, As Packed Sub | 18 |
|
- | ||||
| 2 | 22004482 | Board, Control----sub | 28 |
|
- | ||||
| 2 | 22004488 | Control Board | 25 |
|
- | ||||
| 2 | 22004488 | Control Board | 29 |
|
- | ||||
| 3 | 22003276 | Cover, Console Plug (wht) | 10 |
|
- | ||||
| 4 | 22004213 | Facia Console/mem Pad Aspk Wht | 10 |
|
- | ||||
| 4 | 22004438 | Led Console Assy-wht - As Pack | 18 |
|
- | ||||
| 5 | 22003274 | Lid, Dispenser (wht) | 10 |
|
- | ||||
| 6 | W11772394 | Screw, Dispenser Lid (Replaces: 22003681) | 10 |
|
Immediately | $ 10.94 | |||
| 7 | 22003273 | Bezel, Dispenser (wht) | 10 |
|
$ 35.00 | ||||
| 8 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 9 | 22004180 | Cover, Top (wht-as Pk) | 10 |
|
- | ||||
| 10 | 22003844 | Dispenser Bottom | 10 |
|
$ 66.94 | ||||
| 11 | 22003321 | Grid, Dispenser | 10 |
|
- | ||||
| 12 | 22003848 | Siphon Cup | 10 |
|
$ 28.35 | ||||
| 13 | 22003849 | Siphon Cap | 10 |
|
$ 38.07 | ||||
| 14 | WP616099 | Clamp, Stepless (Replaces: 22003627) | 10 |
|
Immediately | $ 7.03 | |||
| 14 | WP22002083 | Hose, Injector (Replaces: 22002083) | 10 |
|
$ 124.55 | ||||
| 15 | 12001929 | Valve Seal Kit | 10 |
|
$ 6.26 | ||||
| 16 | 22003833 | Hose, Tub Shower | 10 |
|
$ 69.09 | ||||
| 16 | WP489503 | Clamp - 15/16`` (Replaces: 205161) | 10 |
|
Immediately | $ 9.68 | |||
| 17 | 22003845 | Dispenser Cover (flume) | 10 |
|
- | ||||
| 18 | WP489503 | Clamp - 15/16`` (Replaces: 205161) | 10 |
|
Immediately | $ 9.68 | |||
| 18 | 22003832 | Fill Hose, Dispenser | 10 |
|
$ 48.05 | ||||
| 19 | 12001930 | Dispenser Valve (Replaces: 22003846) | 10 |
|
$ 178.80 | ||||
| 19 | 22002436 | Screw | 10 |
|
- | ||||
| 20 | 22003806 | Medallion, Console (wht) | 10 |
|
- | ||||
| 21 | 22003854 | Emi Suppression Filter, 12a | 10 |
|
- |
