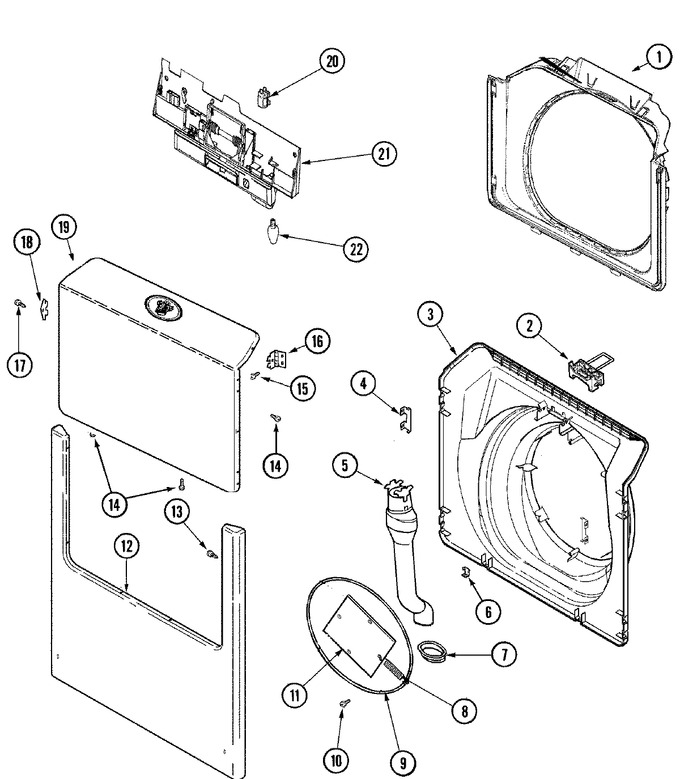

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003516 | Shroud (wht)----na | 10 |
|
- | ||||
| 2 | WP22003269 | Door, Lock Hoop Assembly (Replaces: 22003269) | 10 |
|
$ 49.33 | ||||
| 3 | WP22003275 | Door, Inner (wht) (Replaces: 22003275) | 10 |
|
Immediately | $ 165.54 | |||
| 4 | 22002038 | Clip, Door (double) | 10 |
|
- | ||||
| 5 | 22003850 | Vent Tube Assembly | 10 |
|
$ 45.03 | ||||
| 6 | 22002039 | Clip, Door (single) | 10 |
|
$ 8.15 | ||||
| 7 | WP22003075 | Grommet, Vent Tube (Replaces: 22003075) | 10 |
|
$ 50.41 | ||||
| 8 | 22002356 | Spring, Plate | 10 |
|
- | ||||
| 9 | 22002104 | Wireframe | 10 |
|
- | ||||
| 10 | 22002007 | Screw | 10 |
|
- | ||||
| 11 | 22002094 | Plate | 10 |
|
- | ||||
| 12 | 22002836 | Panel, Front (wht) | 10 |
|
$ 448.33 | ||||
| 12 | 22004428 | Seal, Export | 10 |
|
$ 9.49 | ||||
| 13 | 22002012 | Screw, Hinge | 10 |
|
$ 5.48 | ||||
| 14 | W11233072 | Screw (Replaces: 22002517) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | WP98006631 | Screw (Replaces: 22002062) | 10 |
|
$ 6.26 | ||||
| 16 | WP22002798 | Hinge, Door (Replaces: 22002798) | 10 |
|
$ 77.72 | ||||
| 17 | WP33001787 | Screw, Hinge (Replaces: 33001787) | 10 |
|
$ 10.45 | ||||
| 18 | 33001764 | Cover, Hinge Hole (wht) | 10 |
|
$ 36.41 | ||||
| 19 | 22003242 | Door, Outer W/medallion (wht) | 10 |
|
- | ||||
| 20 | 22002433 | Bulb Holder Assembly | 10 |
|
- | ||||
| 21 | WP22004435 | Latch, Assembly Door Emz (Replaces: 22004435) | 18 |
|
$ 292.00 | ||||
| 21 | WP22003593 | Assy., Door Latch (Replaces: 22003593) | 10 |
|
Immediately | $ 253.68 | |||
| 22 | WP22002263 | Lamp (10 Watt) (Replaces: 22002263) | 10 |
|
Immediately | $ 12.29 | |||
| 23 | 22002305 | Insulation, Front Panel | 10 |
|
- | ||||
| 24 | 22002244 | Clip, Grounding | 10 |
|
- |
