01 - Cabinet

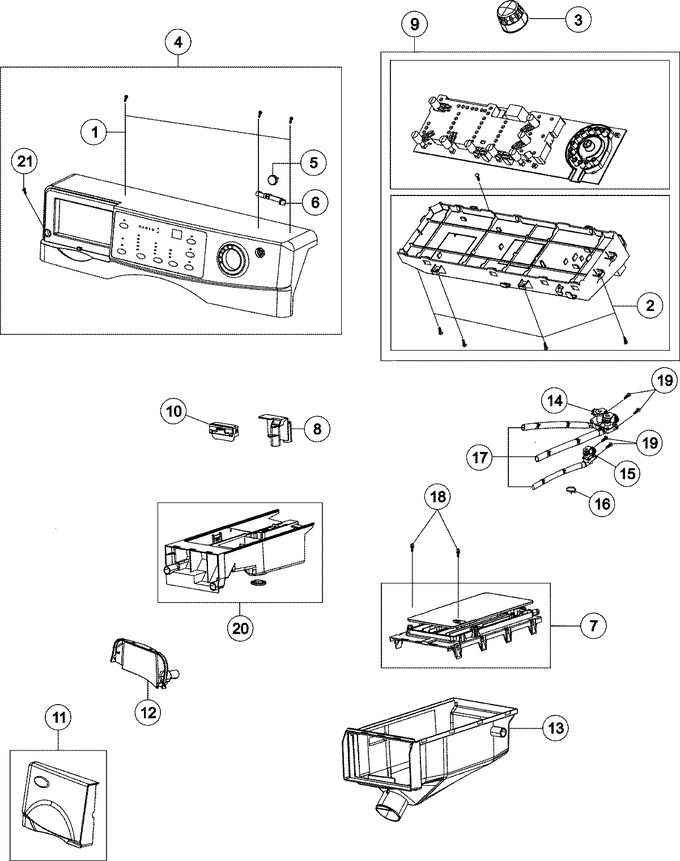

02 - Control Board / Dispenser
03 - Door
04 - Supplemental Information
05 - Tub - Front
06 - Tub Back
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98008545 | Screw-tapping (Replaces: 34001232) | 10 |
|
$ 15.94 | ||||
| 2 | 34001231 | Screw-tapping | 10 |
|
$ 4.83 | ||||
| 3 | 34001233 | Knob-encoder | 10 |
|
$ 18.49 | ||||
| 4 | 34001418 | Assy-panel Control | 10 |
|
$ 215.17 | ||||
| 5 | 34001235 | Button-push (p) | 10 |
|
$ 27.54 | ||||
| 6 | 34001419 | Lever-power | 10 |
|
- | ||||
| 7 | WP34001284 | Assy-s.housing Drawer (Replaces: 34001423) | 10 |
|
$ 100.19 | ||||
| 8 | 34001401 | Cap-rinse | 10 |
|
$ 32.15 | ||||
| 9 | 34001487 | Bracket, Sensor (6700) | 14 |
|
- | ||||
| 9 | 34001499 | Assy Pcb-6700 (series 14) | 14 |
|
- | ||||
| 9 | 34001420 | Assy-pcb - Parts Dno | 10 |
|
- | ||||
| 9 | 34001479 | Board, Control | 11 |
|
$ 408.92 | ||||
| 9 | 34001484 | Pcb (mems) Sensor Dno | 14 |
|
$ 119.23 | ||||
| 10 | 34001239 | Guide-liquid | 10 |
|
- | ||||
| 11 | 34001470 | Assy-s.panel Drawer | 10 |
|
- | ||||
| 12 | 34001422 | Handle-drawer | 10 |
|
$ 18.96 | ||||
| 13 | WP34001245 | Housing-drawer (l) (Replaces: 34001245) | 10 |
|
$ 120.07 | ||||
| 14 | WP34001151 | Valve-water (cold) (Replaces: 34001151) | 10 |
|
Immediately | $ 150.44 | |||
| 15 | WP34001131 | Valve-water (hot) (Replaces: 34001131) | 10 |
|
Immediately | $ 161.34 | |||
| 16 | WP596669 | Clamp-hose (Replaces: 34001208) | 10 |
|
Immediately | $ 7.56 | |||
| 17 | 34001109 | Hose-drawer (.25) | 10 |
|
- | ||||
| 18 | WP98008545 | Screw-tapping (Replaces: 34001232) | 10 |
|
$ 15.94 | ||||
| 19 | 34001250 | Screw-taptite | 10 |
|
- | ||||
| 20 | 34001282 | Assy-s. Body Drawer | 10 |
|
- | ||||
| 21 | 6002-001006 | Screw-tapping;th,+,2s,m4,l12,- | 10 |
|
$ 0.85 |
