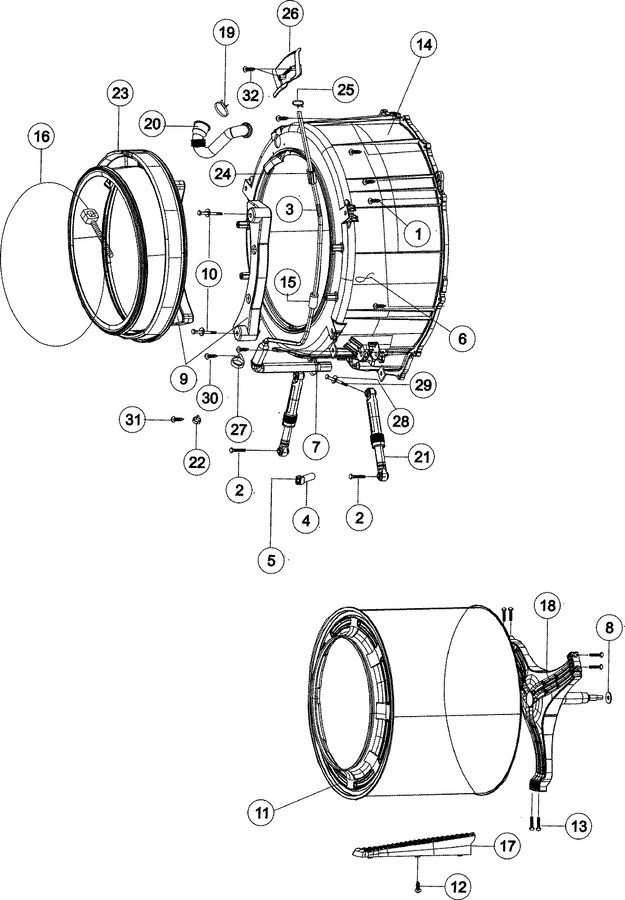

05 - Tub - Front


06 - Tub Back


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	34001147		Bolt/screw-pump Bracket	10			$ 40.75
3	34001436		Hose-pressure (l)	10			$ 64.50
4	34001202		Thermistor	10			$ 41.79
5	34001162		Packing-thermistor-grommet	10	Appelez-nous	-
6	WPW10339879		Wire Tie - Vinyl   (Replaces: 34001229)	10			$ 7.11
7	WP285655		Clamper Hose   (Replaces: 34001315)	10		Immediately	$ 7.55
8	34001409		Washer-wave	10	Appelez-nous	-
9	34001276		Weight-balancer (f)	10	Appelez-nous	-
10	34001158		Assy-bolt	10			$ 49.95
11	34001430		Assy-semi Drum	10	Appelez-nous	-
12	34001251		Screw-tapping	10	Appelez-nous	-
13	34001277		Bolt-flange	10			$ 9.72
14	34001435		Assy-semi Tub Front	10	Appelez-nous	-
15	34001307		Sponge-harness	10	Appelez-nous	-
16	34001306		Assy-clamp Diaphgram	10			$ 30.78
17	34001431		Drum-lifter	10	Appelez-nous	-
18	34001407		Assy-frame Shaft	10			$ 284.31
19	34001305		Band-ring	10	Appelez-nous	-
20	34001434		Hose-drawer Tub	10			$ 89.71
21	34001303		Damper-shock	10			$ 57.79
22	34001433		Cable Clamp	10	Appelez-nous	-
23	WP34001432		Door-diaphragm (boot)   (Replaces: 34001432)	10		Immediately	$ 265.28
24	34001301		Sponge-hose Air	10			$ 12.53
25	DC61-70029C		Spring-clamp   (Replaces: 34001169)	10			$ 0.85
26	34001300		Guide-water	10	Appelez-nous	-
27	34001299		Clamper Hose	10			$ 11.33
28	DC60-60044A		Washer-plain   (Replaces: 34001272)	10			$ 1.66
29	34001148		Bolt-hex	10			$ 14.23
30	WP98008545		Screw-tapping   (Replaces: 34001232)	10			$ 15.94
31	WP98008545		Screw-tapping   (Replaces: 34001232)	10			$ 15.94
32	34001251		Screw-tapping	10	Appelez-nous	-
