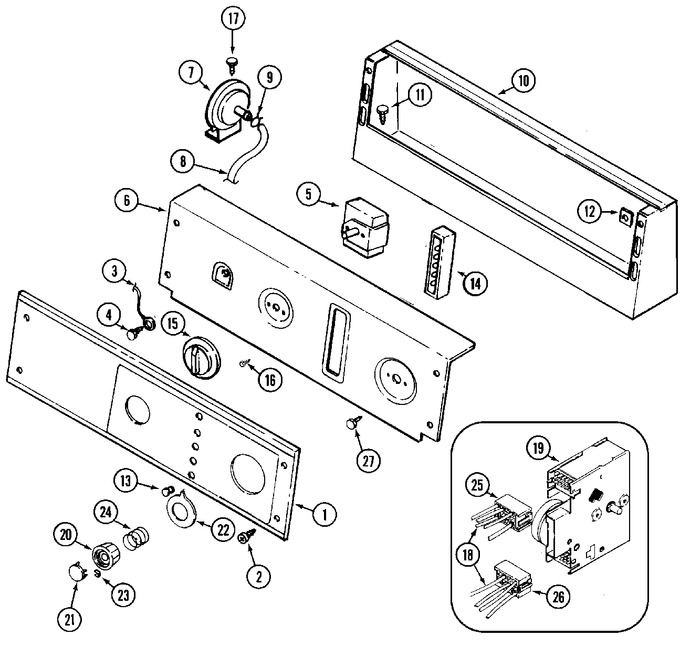

01 - Control Panel


02 - Top


03 - Cabinet


04 - Tub


05 - Base


06 - Transmission


07 - Clutch, Brake & Belts


08 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22001147		Panel, Control	A0	Appelez-nous	-
001	NLA		Panel, Control	12	Appelez-nous	-
002	WPW10131119		Screw, Control Panel   (Replaces: 215506)	A0			$ 6.26
003	204807		Wire, Ground	A0	Appelez-nous	-
004	WP489128		Screw, Ground Wire   (Replaces: 210186)	A0			$ 9.79
005	COMM PART		Switch, Temperature   (Replaces: 205353)	A0	Appelez-nous	-
006	215571		Plate, Back-up (wht)	A0	Appelez-nous	-
006	22001596		(wht)	12	Appelez-nous	-
007	203263		Switch, Water Level	A0	Appelez-nous	-
008	WP22001619		Tube, Water Level Switch   (Replaces: 212942)	A0			$ 75.73
009	WP596669		Clamp, Water Level Tube   (Replaces: 410296)	A0		Immediately	$ 7.56
010	22001366		Console (wht)	A0	Appelez-nous	-
011	WP90767		Screw, Console   (Replaces: 211294)	A0		Immediately	$ 7.04
011	WP90767		Screw, Console   (Replaces: Y313559)	A0		Immediately	$ 7.04
012	215003		Clip, Screw	A0	Appelez-nous	-
013	WP215564		Lens, Indicator (amber)   (Replaces: 215564)	A0		Immediately	$ 7.14
014	206881		Light, Indicator	A0			$ 96.51
014	206882		Light, Indicator	A0	Appelez-nous	-
015	206894		Knob, Selector (w/bumper)	A0	Appelez-nous	-
015	215561		Bumper, Knob	A0	Appelez-nous	-
016	WP488234		Screw, Temperature Switch   (Replaces: Y313588)	A0			$ 6.07
017	WP90767		Screw, Water Level Switch   (Replaces: 211294)	A0		Immediately	$ 7.04
018	22001089		Wire Harness, Main	A0	Appelez-nous	-
018	22001092		Wire Harness, Main	A0	Appelez-nous	-
018	22002221		Wire Harness, Main	15	Appelez-nous	-
019	22001082		Timer	A0			$ 202.15
019	22001084		Timer	A0	Appelez-nous	-
020	206892		Knob, Timer	A0			$ 9.04
021	WPW10133501		Cap, Timer Knob   (Replaces: 314723)	A0			$ 54.76
022	206893		Skirt, Timer Dial	A0	Appelez-nous	-
022	22001571		(blk)	12			$ 33.62
023	211605		Retainer, Timer Knob	A0	Appelez-nous	-
024	211065		Spring, Timer Knob	A0			$ 5.70
025	22001349		Housing, Connector (blk)	A0	Appelez-nous	-
026	22001350		Housing, Connector (wht)	A0	Appelez-nous	-
026	NLA		Connector, Wire	A0	Appelez-nous	-
027	216412		Screw, Timer	A0	Appelez-nous	-
