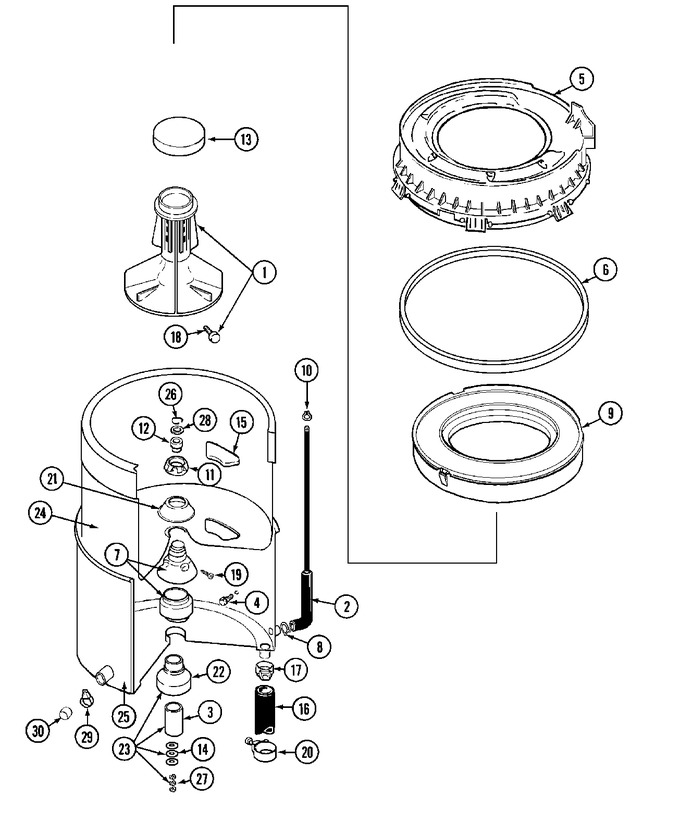

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 207228 | Agitator W/lock Screw | A0 |
|
$ 101.23 | ||||
| 002 | WP22001619 | Tube, Water Level Switch (Replaces: 212942) | A0 |
|
$ 75.73 | ||||
| 003 | 211130 | Liner, Tub Bearing | A0 |
|
$ 724.10 | ||||
| 004 | W10175939 | Bolt & Gasket Assembly (short) (Replaces: 200744) | A0 |
|
$ 7.79 | ||||
| 004 | W10175938 | (long) (Replaces: 205254) | A0 |
|
Immediately | $ 7.00 | |||
| 005 | 22001299 | Tub Cover & Gasket Assembly | A0 |
|
$ 250.97 | ||||
| 006 | WP22001007 | Gasket, Tub Cover (Replaces: Y22001201) | A0 |
|
Immediately | $ 61.54 | |||
| 007 | 204012 | Mounting Stem Repair Kit | A0 |
|
- | ||||
| 008 | WP285655 | Clamp, 1-1/16`` (Replaces: 211641) | A0 |
|
Immediately | $ 7.55 | |||
| 009 | 22001142 | Ring, Balance (w/concrete) | A0 |
|
$ 116.24 | ||||
| 010 | WP596669 | Clamp, Water Level Tube (Replaces: 410296) | A0 |
|
Immediately | $ 7.56 | |||
| 011 | 211047 | Nut, Clamping | A0 |
|
- | ||||
| 012 | WP6-0A57420 | Seal, Agitator Drive Shaft (Replaces: Y0A4298) | A0 |
|
Immediately | $ 33.64 | |||
| 013 | 216251 | Cap, Agitator (wht) | A0 |
|
- | ||||
| 014 | 211100 | Washer, Cushion | A0 |
|
- | ||||
| 015 | 215980 | Plug, Tub | A0 |
|
$ 64.66 | ||||
| 016 | WP213045 | Hose, Outer Tub (Replaces: 213045) | A0 |
|
Immediately | $ 43.57 | |||
| 017 | WP285655 | Clamp, Hose (Replaces: 201011) | A0 |
|
Immediately | $ 7.55 | |||
| 018 | 206478 | Screw & Washer Assembly | A0 |
|
- | ||||
| 019 | 22001423 | Set Screw, Mounting Stem (Replaces: 211618) | A0 |
|
$ 45.54 | ||||
| 020 | WP3367052 | Clamp, Tub Hose (Replaces: 202574) | A0 |
|
$ 7.49 | ||||
| 021 | 211210 | Washer, Clamping Nut | A0 |
|
$ 5.84 | ||||
| 022 | 6-2040130 | Bearing, Tub (Replaces: 200824) | A0 |
|
Immediately | $ 73.68 | |||
| 023 | 6-2040130 | Tub Bearing Repair Kit (Replaces: 204013) | A0 |
|
Immediately | $ 73.68 | |||
| 024 | 22001139 | Tub, Inner | A0 |
|
$ 146.71 | ||||
| 025 | 22001114 | Tub, Outer | A0 |
|
- | ||||
| 026 | Y015667 | Retaining Ring | A0 |
|
$ 8.70 | ||||
| 027 | Y054867 | Washer, Lock | A0 |
|
- | ||||
| 028 | WPY015666 | Washer, Retaining (Replaces: Y015666) | A0 |
|
$ 6.96 | ||||
| 029 | WP596669 | Clamp, Hose (Replaces: 214739) | A0 |
|
Immediately | $ 7.56 | |||
| 030 | 214725 | Cap, Bleach Spout | A0 |
|
$ 5.65 |
