SELECT A DIAGRAM

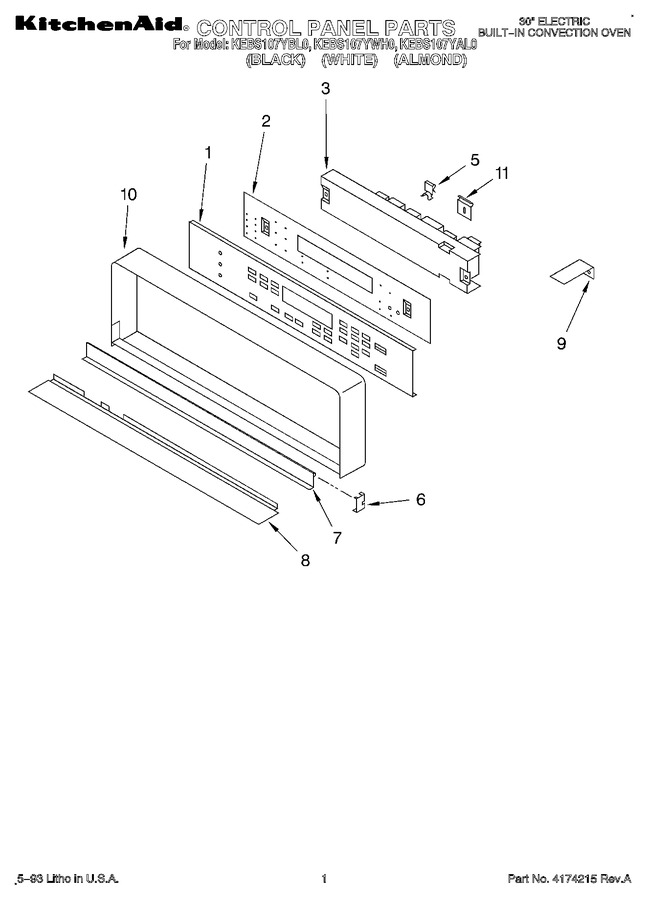

01 - Control Panel
02 - Vent And Latch
03 - Oven, Lit/optional
04 - Internal Oven
05 - Convection Fan, Optional
06 - Door
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3183527 | Switch, Membrane (white) |
|
- | |||||
| 1 | 3183528 | Switch, Membrane (almond) |
|
- | |||||
| 1 | 3183526 | Switch, Membrane (black) |
|
- | |||||
| 2 | 3183794 | Bracket, Mounting Switch Membrane |
|
- | |||||
| 3 | 3179117 | Screw |
|
- | |||||
| 3 | 3181703 | Microcomputer |
|
- | |||||
| 5 | 3182985 | Clip, Retainer |
|
- | |||||
| 6 | 3182162 | Trim, Door |
|
- | |||||
| 7 | 3182158 | Door, Latch Handle (almond) |
|
- | |||||
| 7 | 3179847 | Door, Latch Handle (screw) |
|
- | |||||
| 7 | 3182152 | Door, Latch Handle (black) |
|
- | |||||
| 7 | 3182155 | Door, Latch Handle (white) |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 8 | 3183703 | Trim, Panel |
|
- | |||||
| 9 | 3185424 | Bracket |
|
- | |||||
| 9 | 3182939 | Screw |
|
- | |||||
| 10 | 3182149 | Frame, Control Panel |
|
- | |||||
| 11 | 3184567 | Clip, Control Frame |
|
- |
