SELECT A DIAGRAM

01 - Control Panel

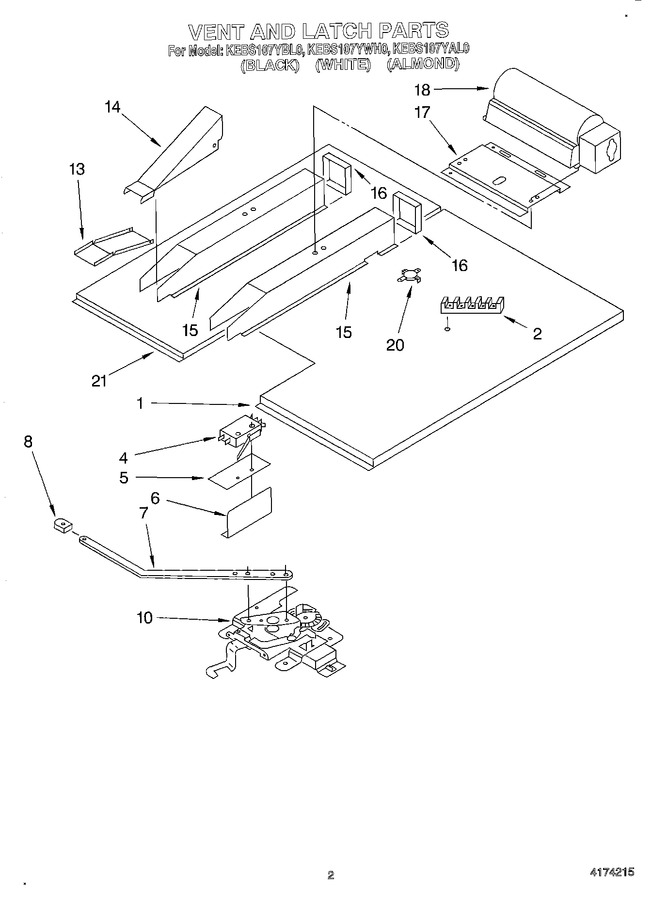

02 - Vent And Latch


03 - Oven, Lit/optional


04 - Internal Oven


05 - Convection Fan, Optional


06 - Door


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
1	3183949		Extension, Baffle		Appelez-nous	-
2	WP8203546		Block, Terminal   (Replaces: 3184673)			Immediately	$ 27.12
4	3183784		Switch, Latch		Appelez-nous	-
5	309245		Insulator, Switch		Appelez-nous	-
6	309258		Screw		Appelez-nous	-
6	313035		Shield, Terminal		Appelez-nous	-
7	308422		Screw		Appelez-nous	-
7	3184002		Handle, Latch		Appelez-nous	-
8	3183294		Screw		Appelez-nous	-
8	3184039		Knob, Latch Handle		Appelez-nous	-
10	3183800		Latch, Mechanism		Appelez-nous	-
13	3183954		Nozzle, Vent Bottom		Appelez-nous	-
14	3183955		Nozzle, Vent Top		Appelez-nous	-
15	4173231		Screw, Mounting		Appelez-nous	-
15	3184078		Box, Vent (2)		Appelez-nous	-
16	3183964		End, Vent Box		Appelez-nous	-
16	WP90767		Screw   (Replaces: 300890)			Immediately	$ 7.04
17	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
17	3183533		Bracket, Mounting Fan		Appelez-nous	-
18	3183720		Blower, Fan		Appelez-nous	-
20	WP90767		Screw   (Replaces: 300890)			Immediately	$ 7.04
20	3149650		Spst Thermostat		Appelez-nous	-
21	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
21	3183948		Baffle, Vent Mtg.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
