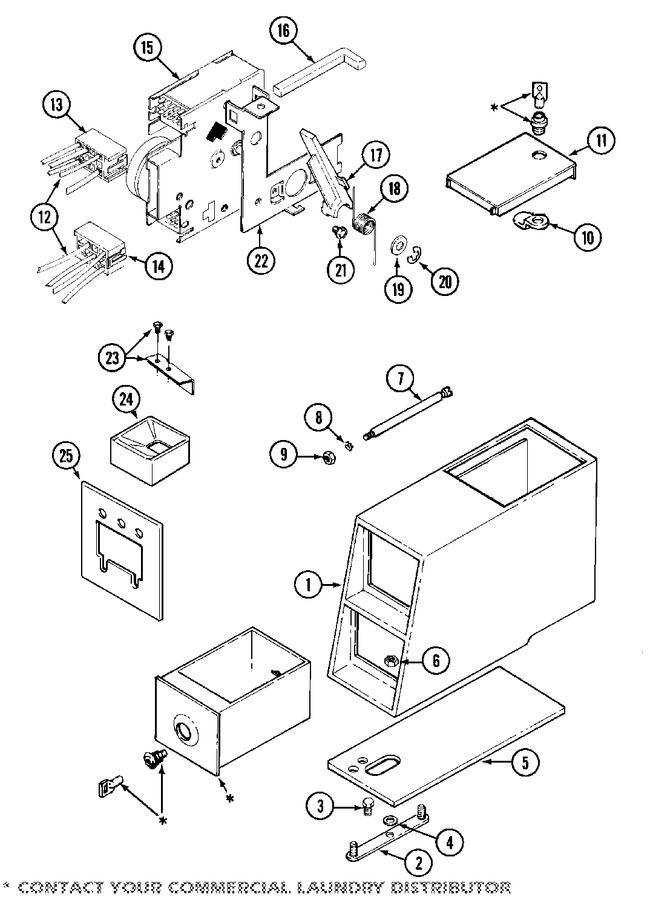

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP22002478 | Vault, Coin (wht) (Replaces: 22002478) | 24 |
|
$ 266.69 | ||||
| 001 | 22002885 | (alm) (original Coin Vault Nla Use (Replaces: 22002479) | 24 |
|
- | ||||
| 002 | 22001810 | Strap, Mounting | 10 |
|
- | ||||
| 003 | WP90767 | Screw, Mounting Strap (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 004 | 910309 | Washer, Strap Screw | 10 |
|
- | ||||
| 005 | 22001870 | Gasket, Coin Vault (wht) | 10 |
|
- | ||||
| 005 | 22001874 | (alm) | 10 |
|
- | ||||
| 006 | WP62739 | Nut, Case Mounting (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 007 | 211605 | Clip, Locking Bolt | 10 |
|
- | ||||
| 007 | WP8576635 | Bolt, Locking (Replaces: 22001903) | 10 |
|
Immediately | $ 67.13 | |||
| 008 | 910387 | Lock Washer | 10 |
|
- | ||||
| 009 | Y052721 | Nut, Locking Bolt | 10 |
|
$ 21.38 | ||||
| 010 | NLA | Cam, Locking | 10 |
|
- | ||||
| 011 | 22001881 | Grommet, Double | 10 |
|
- | ||||
| 011 | 22001882 | Latch, Access Door | 10 |
|
- | ||||
| 011 | 22001883 | Screw | 10 |
|
- | ||||
| 011 | 22001910 | Door, Access (wht) | 10 |
|
- | ||||
| 011 | 22001911 | (alm) | 10 |
|
- | ||||
| 011 | 22001912 | (wht) | 10 |
|
- | ||||
| 012 | 22001088 | Wire Harness (cs) | 10 |
|
- | ||||
| 012 | 22001093 | Wire Harness | 10 |
|
- | ||||
| 012 | 22002223 | Harness, Wire | 15 |
|
- | ||||
| 012 | NLA | Harness, Wire (cs) | 15 |
|
- | ||||
| 013 | 22001885 | Housing, Connector (rt)----n | 10 |
|
- | ||||
| 014 | 22001886 | Housing, Connector (lt) | 10 |
|
- | ||||
| 015 | WP22001083 | Timer (Replaces: 22001083) | 10 |
|
Immediately | $ 568.89 | |||
| 015 | 22001086 | Timer | 10 |
|
- | ||||
| 015 | 22001087 | Timer | 10 |
|
- | ||||
| 016 | 216442 | Rod, Actuator | 10 |
|
$ 44.45 | ||||
| 016 | 22003417 | Actuator Kit (export) | 10 |
|
- | ||||
| 017 | 22001042 | Pivot Arm, Timer | 10 |
|
$ 5.84 | ||||
| 018 | 214663 | Spring, Timer Lever | 10 |
|
- | ||||
| 019 | 22001398 | Retainer, Spring----na | 10 |
|
- | ||||
| 020 | Y312270 | Clip, Spring Retainer | 10 |
|
- | ||||
| 021 | 216412 | Screw, Bracket To Timer | 10 |
|
- | ||||
| 022 | WP90767 | Screw, Switch Bracket (Replaces: 212276) | 10 |
|
Immediately | $ 7.04 | |||
| 022 | 22001043 | Bracket, Timer | 10 |
|
- | ||||
| 023 | 22001811 | Actuator Kit | 10 |
|
- | ||||
| 023 | 22001813 | Actuator Kit (export) | 10 |
|
- | ||||
| 024 | WPW10529176 | Chute, Coin (removed At Series 24) (Replaces: 22001878) | 10 |
|
$ 273.48 | ||||
| 024 | 22002533 | Weld Assy., Funnel | 24 |
|
- | ||||
| 024 | 22002534 | Bolt, Carriage | 24 |
|
- | ||||
| 025 | 22001879 | Plate, Adapter (wht) (removed At Series 24) | 10 |
|
- | ||||
| 025 | 22001880 | (remove At Series 24) |
|
- | |||||
| 025 | NLA | (alm) | 10 |
|
- | ||||
| 026 | 22001904 | (removed At Series 24) |
|
- | |||||
| 026 | NLA | Brace, Coin Slide | 10 |
|
- | ||||
| 027 | 22001913 | Double Actuator Door Kit (wht) | 10 |
|
- | ||||
| 027 | 22001914 | (alm) | 10 |
|
- |
